ESE16J001 - Panasonic

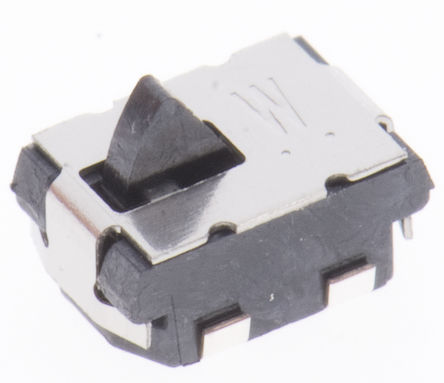

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

ESE16J001
Manufacturer

Panasonic
ChipWorker Part#

CW7554265
Category

Switch
Package

SMD
Description

PANASONIC ELECTRONIC COMPONENTS ESE16J001 Detector Switch, SPST-NO, Solder, 10mA, 5V, 1.5mm
Documentation

Datasheet

ESE16J001 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

ESE16J001 Specifications

Attribute	Attribute Value

Part Number	ESE16J001
Manufacturer	Panasonic
ChipWorker Part#	CW7554265
Category	Switch
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	4 Pin
Case/Package	SMD
Contacts Type	SPST-NO
Contact Current Rating	10mA @5VDC
Operating Temperature (Max)	60 ℃
Operating Temperature (Min)	-10 ℃
	expand all
Size-Width	2.2 mm
Size-Height	1.5 mm
Operating Temperature	-10℃ ~ 60℃
Product Lifecycle Status	Unknown
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
