ETQP3M220KVN - Panasonic

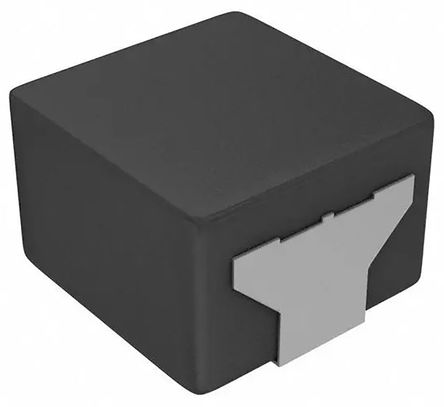

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

ETQP3M220KVN
Manufacturer

Panasonic
ChipWorker Part#

CW55375633
Category

Inductor Surface Mount
Package

6.4mm x 6mm x 3mm
Description

6560 22uH
Documentation

Datasheet

ETQP3M220KVN Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

ETQP3M220KVN Specifications

Attribute	Attribute Value

Part Number	ETQP3M220KVN
Manufacturer	Panasonic
ChipWorker Part#	CW55375633
Category	Inductor Surface Mount
Documentation	Datasheet
Case/Package	6.4mm x 6mm x 3mm
Capacitance Tolerance	±20 %
Inductance	22 µH
Part Family	PCC-M0630M-LP(MC)
Inductance Tolerance	±20 %
Operating Temperature (Max)	155 ℃
Operating Temperature (Min)	-55 ℃
Resistance (DC Max)	0.1408 Ω
	expand all
Size-Length	6.4 mm
Size-Height	3 mm
Operating Temperature	-55℃ ~ 155℃
Product Lifecycle Status	Unknown
Packaging	Cut Tape (CT)
Minimum Packing Quantity	4000
RoHS	RoHS Compliant

Product Description

Panasonic"s ETQP Series Metal Composite Type Power Choke Coils are suited for filter, step-down and step-up circuits for DC/DC converters. They are AEC-Q200 Compliant offering reliability when exposed to high temperatures along with a high resistance to vibration.
Vibration Resistance of 10G ~ 30G (5Hz - 2kHz)
Up to 40% Smaller
Maximum Operating Temperature of 160°C
Thermal Shock -40 ~+150°C
Metal Composite Core with Magnetic Shielding
Non-Hard Saturation
