ETQP5M100YFK - Panasonic

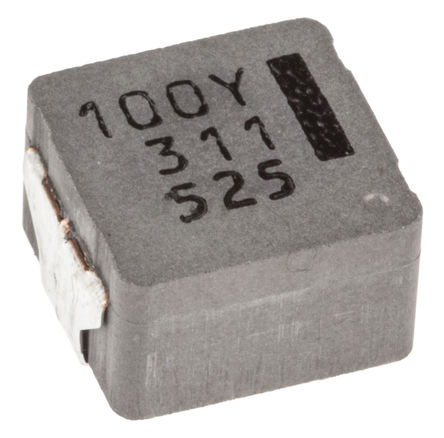

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

ETQP5M100YFK
Manufacturer

Panasonic
ChipWorker Part#

CW60639642
Category

Inductor Surface Mount
Package

PCC-M
Description

8580 10uH
Documentation

Datasheet

ETQP5M100YFK Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

ETQP5M100YFK Specifications

Attribute	Attribute Value

Part Number	ETQP5M100YFK
Manufacturer	Panasonic
ChipWorker Part#	CW60639642
Category	Inductor Surface Mount
Documentation	Datasheet
Number of Pins	2 Pin
Case/Package	PCC-M
Capacitance Tolerance	±20 %
Inductance	10 µH
Part Family	PCC-M0854M(MC)
Inductance Tolerance	±20 %
Test Frequency	100 kHz
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-40 ℃
Resistance (DC Max)	0.037 Ω
	expand all
Size-Length	8.5 mm
Size-Height	5.4 mm
Operating Temperature	-40℃ ~ 150℃
Product Lifecycle Status	Unknown
Packaging	Cut Tape (CT)
Minimum Packing Quantity	1000
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2014/06/16

Product Description

* High heat resistance : Operation up to 150 °C * High-reliability : High vibration resistance due to newly developed integral construction and severe reliability condition of automotive application is covered * High bias current : Excellent inductance stability by using ferrous alloy magnetic material * Temp. stability : Excellent inductance stability in wide temp. range * Low buzz noise : New metal composite core technology * High efficiency : Low RDC of winding and low eddy-current loss of the core * AEC-Q200 qualified * RoHS compliant
