ETQP6F4R6HFA - Panasonic

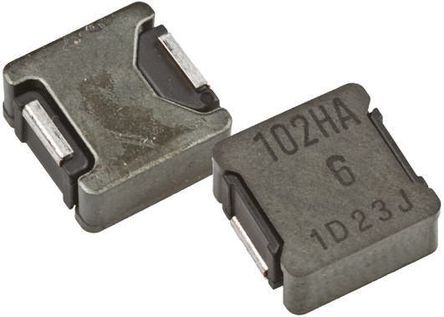

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

ETQP6F4R6HFA
Manufacturer

Panasonic
ChipWorker Part#

CW111993438
Category

Inductor Surface Mount
Package

12.5mm x 12.5mm x 5.7mm
Description

1212 4.6uH
Documentation

Datasheet

ETQP6F4R6HFA Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

ETQP6F4R6HFA Specifications

Attribute	Attribute Value

Part Number	ETQP6F4R6HFA
Manufacturer	Panasonic
ChipWorker Part#	CW111993438
Category	Inductor Surface Mount
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package	12.5mm x 12.5mm x 5.7mm
Current Rating	9.3 A
Insulation Resistance	10.0 MΩ
Capacitance Tolerance	±25 %
Inductance	4.6 µH
Part Family	ETQP6F
Resistance	6.48 mΩ
Shielding	No
Inductance Tolerance	±25 %
Test Frequency	100 kHz
DC Resistance (DCR)	6.48 mΩ
Resistance (DC Max)	0.00648 Ω
	expand all
Size-Length	12.5 mm
Size-Width	12.5 mm
Size-Height	5.7 mm
Product Lifecycle Status	Unknown
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99

Product Description

The PCC-F126F series SMD thin profile Power Choke Coil offers compact design with high power. It is suitable for DC-DC converter for driving PCs at high speed and onboard power supply module for DC-DC converters.
Low leakage flux
