FC8V33030L - Panasonic

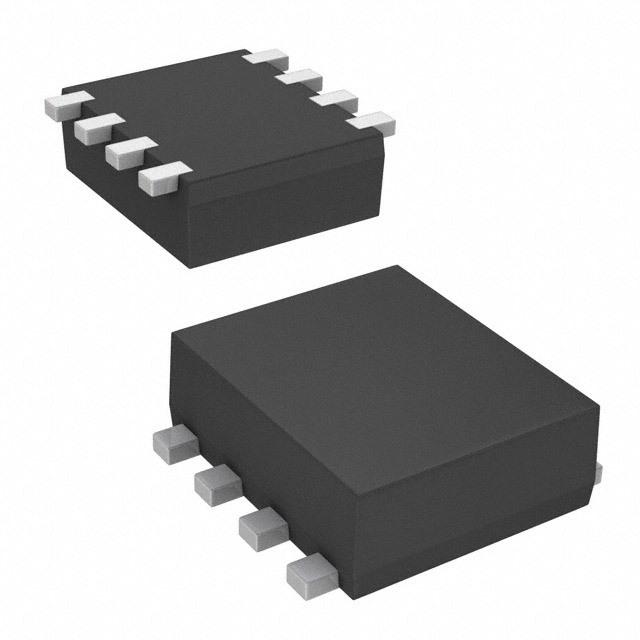

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

FC8V33030L
Manufacturer

Panasonic
ChipWorker Part#

CW94609359
Category

MOSFET, MOSFET Transistor
Package

WMini8-F1
Description

WMini8-F1 N-CH 33V 6.5A
Documentation

Datasheet

FC8V33030L Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

FC8V33030L Specifications

Attribute	Attribute Value

Part Number	FC8V33030L
Manufacturer	Panasonic
ChipWorker Part#	CW94609359
Category	MOSFET, MOSFET Transistor
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	WMini8-F1
Number of Positions	8 Position
Drain to Source Resistance (on) (Rds)	0.015 Ω
Polarity	Dual N-Channel
Power Dissipation	1 W
Threshold Voltage	1 V
Drain to Source Voltage (Vds)	33 V
Continuous Drain Current (Ids)	6.5A
Rise Time	3 ns
Input Capacitance (Ciss)	360pF @10V(Vds)
Input Power (Max)	1 W
Fall Time	9 ns
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	1500 mW
	expand all
Material	Silicon
Operating Temperature	150℃ (TJ)
Product Lifecycle Status	Unknown
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15

Product Description

Mosfet Array 2 N-Channel (Dual) 33V 6.5A 1W Surface Mount
