FDMS7670AS - ON Semiconductor

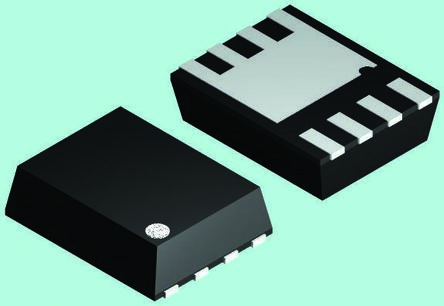

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

FDMS7670AS
Manufacturer

ON Semiconductor
ChipWorker Part#

CW54905733
Category

MOSFET, MOSFET Transistor
Package

Power-56
Description

Trans MOSFET N-CH Si 30V 22A 8-Pin Power 56 T/R
Documentation

Datasheet

FDMS7670AS Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

FDMS7670AS Specifications

Attribute	Attribute Value

Part Number	FDMS7670AS
Manufacturer	ON Semiconductor
ChipWorker Part#	CW54905733
Category	MOSFET, MOSFET Transistor
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	Power-56
Number of Positions	8 Position
Drain to Source Resistance (on) (Rds)	0.0024 Ω
Power Dissipation	2.5 W
Threshold Voltage	1.6 V
Drain to Source Voltage (Vds)	30 V
Rise Time	6 ns
Input Capacitance (Ciss)	3175pF @15V(Vds)
Input Power (Max)	2.5 W
Fall Time	5 ns
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	65 W
	expand all
Size-Length	5 mm
Size-Width	6 mm
Size-Height	1.05 mm
Material	Silicon
Operating Temperature	-55℃ ~ 150℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	Compliant with Exemption
Lead-Free Status	Lead Free

Product Description

N-Channel 30V 22A (Ta), 42A (Tc) 2.5W (Ta), 65W (Tc) Surface Mount 8-PQFN (5x6)
