FDMS86350 - ON Semiconductor

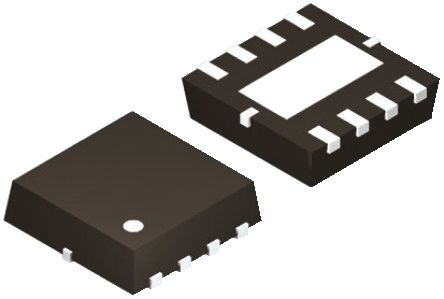

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

FDMS86350
Manufacturer

ON Semiconductor
ChipWorker Part#

CW80310533
Category

MOSFET, MOSFET Transistor
Package

PowerTDFN-8
Description

N-Channel PowerTrench® MOSFET 80V, 130A, 2.4mΩ, 3000-REEL
Documentation

Datasheet

FDMS86350 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

FDMS86350 Specifications

Attribute	Attribute Value

Part Number	FDMS86350
Manufacturer	ON Semiconductor
ChipWorker Part#	CW80310533
Category	MOSFET, MOSFET Transistor
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	PowerTDFN-8
Number of Positions	8 Position
Drain to Source Resistance (on) (Rds)	0.002 Ω
Power Dissipation	156 W
Threshold Voltage	3.8 V
Drain to Source Voltage (Vds)	80 V
Rise Time	34 ns
Input Capacitance (Ciss)	8030pF @40V(Vds)
Input Power (Max)	2.7 W
Fall Time	11 ns
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	156 W
	expand all
Size-Length	5.1 mm
Size-Width	6.25 mm
Size-Height	1.05 mm
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	Compliant with Exemption
Lead-Free Status	Lead Free

Product Description

N-Channel 80V 25A (Ta), 130A (Tc) 2.7W (Ta), 156W (Tc) Surface Mount Power56
