FDPF17N60NT - Fairchild

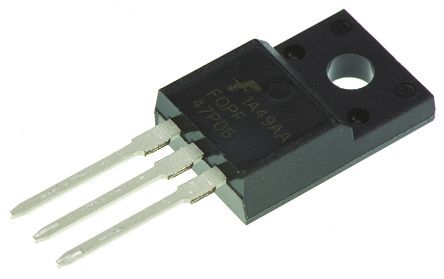

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

FDPF17N60NT
Manufacturer

Fairchild
ChipWorker Part#

CW66798400
Category

MOSFET, MOSFET Transistor
Package

TO-220-3
Description

FAIRCHILD SEMICONDUCTOR FDPF17N60NT Power MOSFET, N Channel, 17A, 600V, 0.29Ω, 10V, 3V
Documentation

Datasheet

FDPF17N60NT Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

FDPF17N60NT Specifications

Attribute	Attribute Value

Part Number	FDPF17N60NT
Manufacturer	Fairchild
ChipWorker Part#	CW66798400
Category	MOSFET, MOSFET Transistor
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-220-3
Number of Positions	3 Position
Drain to Source Resistance (on) (Rds)	0.29 Ω
Polarity	N-Channel
Power Dissipation	62.5 W
Threshold Voltage	3 V
Drain to Source Voltage (Vds)	600 V
Continuous Drain Current (Ids)	17A
Rise Time	79 ns
Input Capacitance (Ciss)	3040pF @25V(Vds)
Input Power (Max)	62.5 W
Fall Time	62 ns
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	62.5W (Tc)
	expand all
Size-Length	10.36 mm
Size-Width	4.9 mm
Size-Height	16.07 mm
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Rail, Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15

Product Description

N-Channel 600 V 17A (Tc) 62.5W (Tc) Through Hole TO-220F-3
