FF450R12KT4 - Infineon

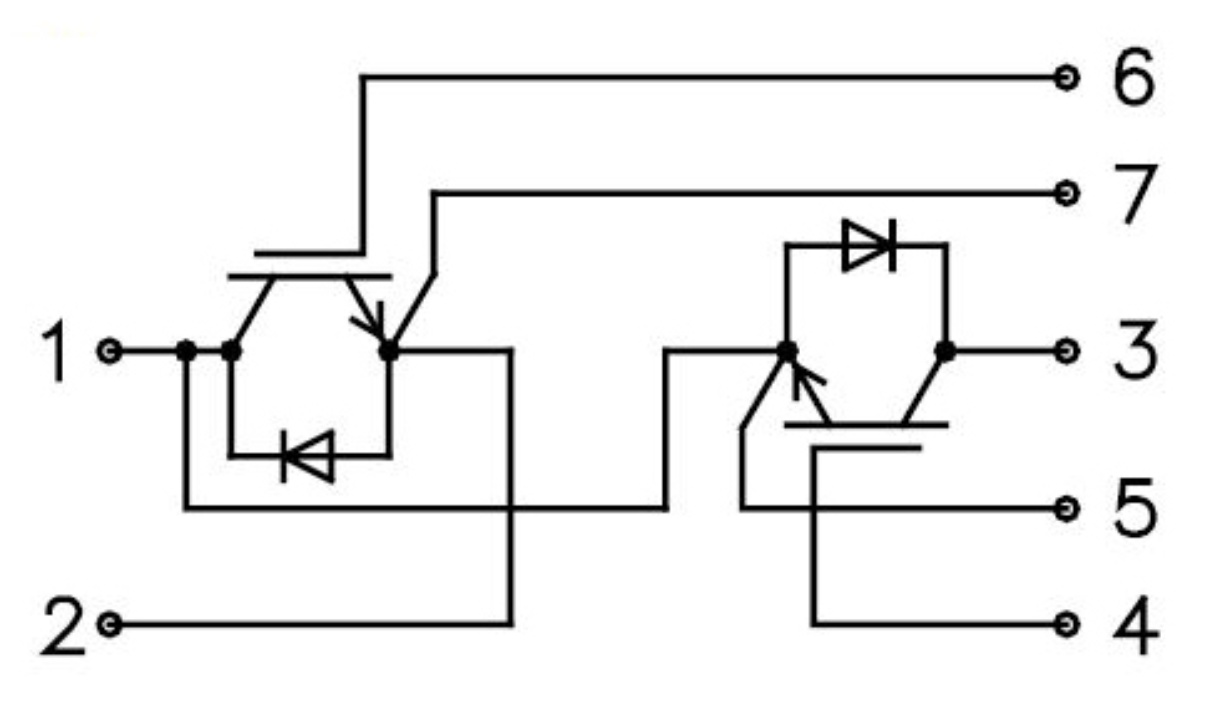

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

FF450R12KT4
Manufacturer

Infineon
ChipWorker Part#

CW3222237
Category

IGBT Transistor, IGBT Module
RoHS

Lead free / RoHS Compliant
Description

Trans IGBT Module N-CH 1200V 580A 2400000mW 7Pin 62MM Tray
Documentation

Datasheet

FF450R12KT4 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

FF450R12KT4 Specifications

Attribute	Attribute Value

Part Number	FF450R12KT4
Manufacturer	Infineon
ChipWorker Part#	CW3222237
Category	IGBT Transistor, IGBT Module
Documentation	Datasheet
Mounting Style	Screw
Number of Pins	7 Pin
Case/Package	AG-62MM-1
Power Rating	2.4 kW
Number of Positions	7 Position
Polarity	NPN
Power Dissipation	2.4 kW
Breakdown Voltage (Collector to Emitter)	1200 V
Input Capacitance (Cies)	28nF @25V
Input Power (Max)	2400 W
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	2.4 kW
	expand all
Size-Length	106.4 mm
Size-Width	61.4 mm
Size-Height	30.5 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Box
RoHS	RoHS Compliant
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99

Product Description

Summary of Features:
Superior solution for frequency controlled inverter drives
UL/CSA Certification with UL1557 E83336
Operating temperature up to 150 °C
Optimized switching characteristic like softness and reduced switching losses
Existing packages with higher current capability
RoHS compliant
Benefits:
Flexibility
Optimal electrical performance
Highest reliability
