FQB22P10TM - Fairchild

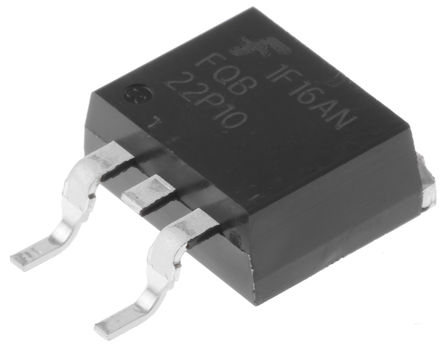

The pictures are for reference only, and the specific specifications can be found in the product manual.
-
Part NoFQB22P10TM
-
ManufacturerFairchild
-
ChipWorker Part#CW9669650
-
CategoryMOSFET, MOSFET Transistor
-
PackageTO-263-3
-
DescriptionMOSFET Transistor, P Channel, 22A, 100V, 96mohm, 10V, -4V
-
DocumentationDatasheet
Payment Methods and Delivery
{{ estimate }}
FQB22P10TM Global Supplier
| {{ supplierTable.supplier }} | {{ supplierTable.part }} | {{ supplierTable.availability }} | MOQ | {{ supplierTable.delivery_date }} | {{ supplierTable.buy }} | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
{{ skuList.vendorName }}
|
{{ noList.partNo }}
{{ strFormat(skuList.part_no) }}
{{ skuList.part_no }}
{{ skuList.mfrEn }}
|
{{ numFormat(skuList.stockQty) }}
{{ search_item }}
|
{{ skuList.moq }} - |
{{ceilNumber(skuList.minDeliveryDay,skuList.maxDeliveryDay)}} {{delivery_date}}
6 {{delivery_date}}
|
{{ formatQuantity(priceList.quantity) }}
{{ ToEffectiveNum(priceList.price) }}
{{viewMore}}
|
|
{{ skuList.vendorName }}
|
{{ skuList.part_no }}
{{ skuList.mfrEn }}
{{ noList.partNo }}
{{ noList.mfr }}
|
{{ numFormat(skuList.stockQty) }}
{{ search_item }}
|
- |
{{outStock}}
|
{{ formatQuantity(priceList.quantity) }}
{{ ToEffectiveNum(priceList.price) }}
{{viewMore}}
|
- | ${{UpToFourDecimals(priceCalc,skuList.rate)}} |
|
|
{{viewMore}}
|
|||||||||||||||
|
{{viewMore}}
|
|||||||||||||||
|
DigiKey
|
{{noList.partNo}}
{{noList.mfr}}
|
0
{{ search_item }}
|
- | {{outStock}} | - | ${{UpToFourDecimals(priceCalc,1)}} |
|
||||||||
|
Arrow
|
{{noList.partNo}}
{{noList.mfr}}
|
0
{{ search_item }}
|
- | {{outStock}} | - | ${{UpToFourDecimals(priceCalc,0.96)}} |
|
||||||||
|
Mouser
|
{{noList.partNo}}
{{noList.mfr}}
|
0
{{ search_item }}
|
- | {{outStock}} | - | ${{UpToFourDecimals(priceCalc,0.92)}} |
|
||||||||
|
{{submitRFQ}}
|
|||||||||||||||
{{ apiText }}{{ apiTime }}(UTC+8)
FQB22P10TM Specifications
| Attribute | Attribute Value |
|---|---|
| Part Number | FQB22P10TM |
| Manufacturer | Fairchild |
| ChipWorker Part# | CW9669650 |
| Category | MOSFET, MOSFET Transistor |
| Documentation | Datasheet |
| Mounting Style | Surface Mount |
| Number of Pins | 3 Pin |
| Case/Package | TO-263-3 |
| Voltage Rating (DC) | -100 V |
| Current Rating | -22.0 A |
| Number of Positions | 3 Position |
| Drain to Source Resistance (on) (Rds) | 96 mΩ |
| Polarity | P-Channel |
| Power Dissipation | 3.75 W |
| Drain to Source Voltage (Vds) | 100 V |
| Breakdown Voltage (Gate to Source) | ±30.0 V |
| Continuous Drain Current (Ids) | 15.6 mA, -22.0 A |
| Rise Time | 170 ns |
| Input Capacitance (Ciss) | 1500pF @25V(Vds) |
| Input Power (Max) | 3.75 W |
| Fall Time | 110 ns |
| Operating Temperature (Max) | 175 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Power Dissipation (Max) | 3.75W (Ta), 125W (Tc) |
| expand all | |
| Size-Length | 10.67 mm |
| Size-Width | 9.65 mm |
| Size-Height | 4.83 mm |
| Operating Temperature | -55℃ ~ 175℃ (TJ) |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| REACH SVHC Compliance Edition | 2015/06/15 |
| ECCN Code | EAR99 |
Product Description
- The FQB22P10TM is a QFET® P-channel enhancement-mode Power MOSFET produced using Fairchild Semiconductor"s proprietary planar stripe and DMOS technology. This advanced MOSFET technology has been especially tailored to reduce ON-state resistance and to provide superior switching performance and high avalanche energy strength. It is suitable for switched mode power supplies, audio amplifier and variable switching power applications.
