FQD12N20TM - Fairchild

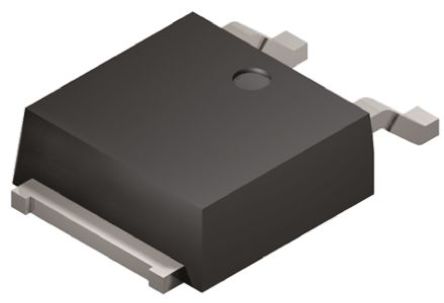

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

FQD12N20TM
Manufacturer

Fairchild
ChipWorker Part#

CW86535578
Category

MOSFET, MOSFET Transistor
Package

TO-252-3
Description

Trans MOSFET N-CH 200V 9A 3Pin(2+Tab) DPAK T/R
Documentation

Datasheet

FQD12N20TM Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

FQD12N20TM Specifications

Attribute	Attribute Value

Part Number	FQD12N20TM
Manufacturer	Fairchild
ChipWorker Part#	CW86535578
Category	MOSFET, MOSFET Transistor
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	TO-252-3
Voltage Rating (DC)	200 V
Current Rating	9.00 A
Number of Channels	1 Channel
Drain to Source Resistance (on) (Rds)	280 mΩ
Polarity	N-Channel
Power Dissipation	2.5 W
Drain to Source Voltage (Vds)	200 V
Breakdown Voltage (Drain to Source)	200 V
Breakdown Voltage (Gate to Source)	±30.0 V
Continuous Drain Current (Ids)	9.00 A
Rise Time	120 ns
Input Capacitance (Ciss)	910pF @25V(Vds)
Input Power (Max)	2.5 W
Fall Time	55 ns
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	2.5W (Ta), 55W (Tc)
	expand all
Size-Length	6.73 mm
Size-Width	6.22 mm
Size-Height	2.39 mm
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ECCN Code	EAR99
