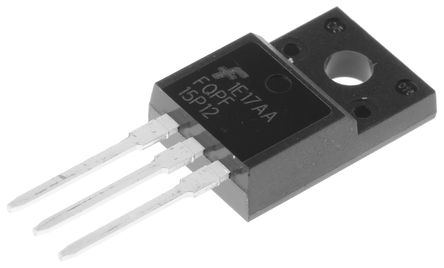

FQPF15P12 - Fairchild

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

FQPF15P12
Manufacturer

Fairchild
ChipWorker Part#

CW119122564
Category

MOSFET, MOSFET Transistor
Package

TO-220-3
Description

Trans MOSFET P-CH 120V 15A 3Pin(3+Tab) TO-220F Tube
Documentation

Datasheet

FQPF15P12 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

FQPF15P12 Specifications

Attribute	Attribute Value

Part Number	FQPF15P12
Manufacturer	Fairchild
ChipWorker Part#	CW119122564
Category	MOSFET, MOSFET Transistor
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-220-3
Voltage Rating (DC)	-120 V
Current Rating	-15.0 A
Drain to Source Resistance (on) (Rds)	200 mΩ
Polarity	P-Channel
Power Dissipation	41 W
Drain to Source Voltage (Vds)	120 V
Breakdown Voltage (Gate to Source)	±30.0 V
Continuous Drain Current (Ids)	15.0 A
Rise Time	100 ns
Input Capacitance (Ciss)	1100pF @25V(Vds)
Input Power (Max)	41 W
Fall Time	80 ns
Operating Temperature (Max)	175 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	41W (Tc)
	expand all
Size-Length	10.36 mm
Size-Width	4.9 mm
Size-Height	16.07 mm
Operating Temperature	-55℃ ~ 175℃ (TJ)
Product Lifecycle Status	Active
Packaging	Rail, Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ECCN Code	EAR99
