FS50R06KE3 - Infineon

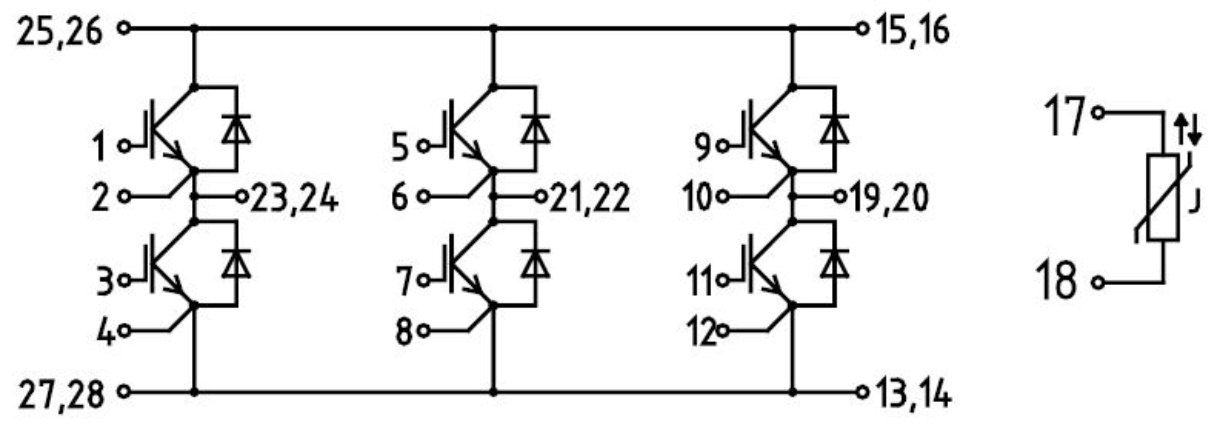

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

FS50R06KE3
Manufacturer

Infineon
ChipWorker Part#

CW120312966
Category

IGBT Transistor, IGBT Module
Package

ECONO2-6
Description

Trans IGBT Module N-CH 600V 70A 28Pin ECONO 2
Documentation

Datasheet

FS50R06KE3 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

FS50R06KE3 Specifications

Attribute	Attribute Value

Part Number	FS50R06KE3
Manufacturer	Infineon
ChipWorker Part#	CW120312966
Category	IGBT Transistor, IGBT Module
Documentation	Datasheet
Mounting Style	Screw
Number of Pins	28 Pin
Case/Package	ECONO2-6
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-40 ℃
	expand all
Size-Length	107.5 mm
Size-Width	45 mm
Size-Height	17 mm
Operating Temperature	-40℃ ~ 150℃
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ECCN Code	EAR99

Product Description

Summary of Features:
High power density
Established Econo module concept
Integrated temperature sensor available
Low stray inductance module design
RoHS-compliant modules
Benefits:
Compact module concept
Optimized customer’s development cycle time and cost
Configuration flexibility
