FS75R12KE3G - Infineon

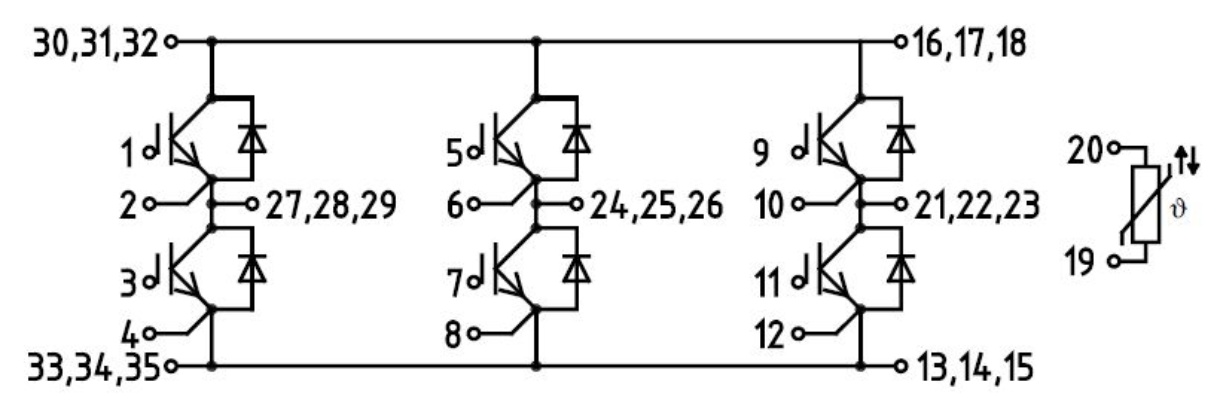

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

FS75R12KE3G
Manufacturer

Infineon
ChipWorker Part#

CW133183531
Category

IGBT Transistor, IGBT Module
Package

ECONO-3
Description

Trans IGBT Module N-CH 1200V 105A 355000mW 35Pin EconoPACK 3B Tray
Documentation

Datasheet

FS75R12KE3G Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

FS75R12KE3G Specifications

Attribute	Attribute Value

Part Number	FS75R12KE3G
Manufacturer	Infineon
ChipWorker Part#	CW133183531
Category	IGBT Transistor, IGBT Module
Documentation	Datasheet
Mounting Style	Screw
Number of Pins	35 Pin
Case/Package	ECONO-3
Power Rating	355 W
Power Dissipation	355 W
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	355 W
	expand all
Size-Length	122 mm
Size-Width	62 mm
Size-Height	17 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
RoHS	RoHS Compliant
Lead-Free Status	Contains Lead

Product Description

Summary of Features:
High power density
Established Econo module concept
Integrated temperature sensor available
Low stray inductance module design
RoHS-compliant modules
Benefits:
Compact module concept
Optimized development cycle time and cost
Configuration flexibility
Fast, reliable and low cost mounting concept
