FSA2268UMX - Fairchild

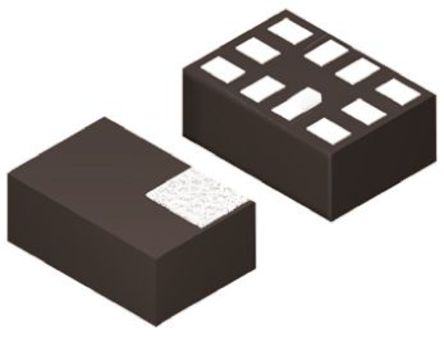

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

FSA2268UMX
Manufacturer

Fairchild
ChipWorker Part#

CW72004267
Category

Interface IC, Interface Controller
Package

UMLP-10
Description

Low Voltage Dual SPDT (0.4Ω) Analog Switch with 16kV ESD, 10LD,UMLP,QUAD,ULTRATHIN MLP, 1.4 X 1.8MM BODY, 5000/TAPE REEL
Documentation

Datasheet

FSA2268UMX Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

FSA2268UMX Specifications

Attribute	Attribute Value

Part Number	FSA2268UMX
Manufacturer	Fairchild
ChipWorker Part#	CW72004267
Category	Interface IC, Interface Controller
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	10 Pin
Case/Package	UMLP-10
Number of Outputs	4 Output
Number of Channels	2 Channel
Bandwidth	50.0 MHz
Number of Inputs	2 Input
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
3dB Bandwidth	50 MHz
Supply Voltage	1.65V ~ 4.3V
Supply Voltage (Max)	4.3 V
Supply Voltage (Min)	1.65 V
	expand all
Size-Length	1.4 mm
Size-Width	1.8 mm
Size-Height	0.5 mm
Operating Temperature	-40℃ ~ 85℃ (TA)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
