FSA266K8X - Fairchild

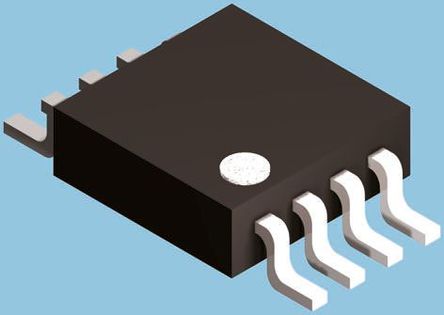

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

FSA266K8X
Manufacturer

Fairchild
ChipWorker Part#

CW56014683
Category

Analog Switch Ic, Analog Switch Multiplexer
Package

VFSOP-8
Description

FAIRCHILD SEMICONDUCTOR FSA266K8X Analog Switch, Dual Channel, SPST, 2Channels, 13.5Ω, 1.65V to 5.5V, VSSOP, 8Pins
Documentation

Datasheet

FSA266K8X Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

FSA266K8X Specifications

Attribute	Attribute Value

Part Number	FSA266K8X
Manufacturer	Fairchild
ChipWorker Part#	CW56014683
Category	Analog Switch Ic, Analog Switch Multiplexer
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	VFSOP-8
Number of Outputs	2 Output
Contacts Type	SPST
Number of Circuits	2 Circuit
Number of Channels	2 Channel
Number of Positions	8 Position
Number of Bits	2 Bit
Power Dissipation	0.25 W
Bandwidth	300 MHz
Number of Inputs	2 Input
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
3dB Bandwidth	300 MHz
Power Dissipation (Max)	250 mW
Supply Voltage	1.65V ~ 5.5V
Supply Voltage (Max)	5.5 V
Supply Voltage (Min)	1.65 V
	expand all
Size-Length	2 mm
Size-Width	2.3 mm
Size-Height	0.7 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99

Product Description

The FSA266K8X is a single-pole single-throw (SPST) ultra-high-speed (UHS) dual Analog Switch or 2-bit Bus Switch. The device is fabricated with advanced sub-micron CMOS technology to achieve high speed enable and disable times and low On Resistance over a broad VCC range. The device is specified to operate over the 1.65 to 5.5V VCC operating range. The device is organized as a dual switch with independent CMOS compatible switch enable (OE) controls. When OE is HIGH, the switch is ON and Port A is connected to Port B. When OE is LOW, the switch is OPEN and a high-impedance state exists between the two ports. The enable inputs tolerate voltages up to 5.5V independent of the VCC operating range.
Useful in both analog and digital applications
Rail-to-rail signal handling
Power down high impedance control inputs
Control inputs are overvoltage tolerant
Control inputs are CMOS compatible
>300MHz (-3dB) Bandwidth
