FSA4157L6X - Fairchild

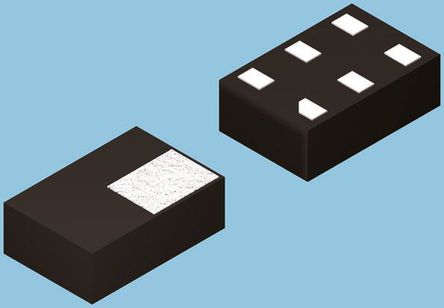

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

FSA4157L6X
Manufacturer

Fairchild
ChipWorker Part#

CW69031804
Category

Interface IC, Interface Controller
Package

UFDFN-6
Description

FAIRCHILD SEMICONDUCTOR FSA4157L6X Analog Switch, Single Channel, SPDT, 1Channels, 1.15Ω, 1.65V to 5.5V, MicroPak, 6Pins
Documentation

Datasheet

FSA4157L6X Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

FSA4157L6X Specifications

Attribute	Attribute Value

Part Number	FSA4157L6X
Manufacturer	Fairchild
ChipWorker Part#	CW69031804
Category	Interface IC, Interface Controller
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	6 Pin
Case/Package	UFDFN-6
Number of Outputs	2 Output
Contacts Type	SPDT
Number of Circuits	1 Circuit
Number of Channels	1 Channel
Number of Bits	1 Bit
Power Dissipation	0.18 W
Bandwidth	300 MHz
Number of Inputs	1 Input
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
3dB Bandwidth	300 MHz
Power Dissipation (Max)	180 mW
Supply Voltage	1.65V ~ 5.5V
	expand all
Size-Length	2 mm
Size-Width	1.25 mm
Size-Height	0.5 mm
Operating Temperature	-40℃ ~ 85℃ (TA)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99

Product Description

Low Voltage 1Ω SPDT Analog Switch The FSA4157A features very low quiescent current even when the control voltage is lower than the VCC supply. This feature services the mobile handset applications very well allowing for the direct interface with baseband processor general purpose I/Os.
