FSBB30CH60CT ,Motor Driver - ON Semiconductor

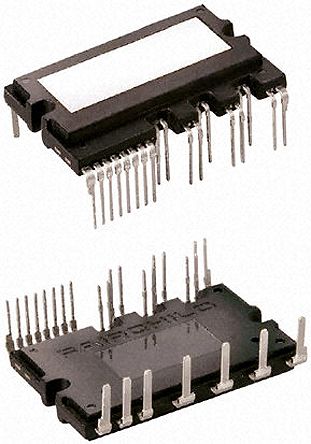

The pictures are for reference only, and the specific specifications can be found in the product manual.

Popularity Score

53 points

Part No

FSBB30CH60CT
Manufacturer

ON Semiconductor
ChipWorker Part#

CW19125030
Category

Motor Driver
Package

SPMCA-027
Description

Trans IGBT Module N-CH 600V 30A 78000mW 27Pin SPMCC Rail
Documentation

Datasheet
Ships from

Moscow
Наличие

6 pcs In Stock
Estimated Price

$ 32.47

Buy FSBB30CH60CT

Stock is limited and changes quickly. Our 24/7 online sales team is ready to respond to your inquiries and orders at any time.

Real stock check

Best price from distributors

Engineer support

FSBB30CH60CT Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Arrow	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Mouser	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
					{{submitRFQ}}
Chipworker	{{noList.partNo}} {{noList.mfr}}	{{stockAvailability}} {{ search_item }}	{{moq}}	1	6 - 8 {{delivery_date}}

Update Data

Chipworker Certification

ChipWorker Qualifications — ISO 9001, ISO 45001, ISO 14001, MA Certification. Over 11 years of experience, more than 1000 clients in Russia, support for small MOQ

11+ years sourcing experience

1000+ russia customers

ISO certified supplier

Support small MOQ

*Photos of Our Actual 800 m² Warehouse

FSBB30CH60CT Specifications

Consulting Engineer >>

Attribute	Attribute Value

Part Number	FSBB30CH60CT
Manufacturer	ON Semiconductor
ChipWorker Part#	CW19125030
Category	Motor Driver
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	27 Pin
Case/Package	SPMCA-027
Isolation Voltage	2500 Vrms
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-40 ℃
	expand all
Size-Length	44.2 mm
Size-Width	27 mm
Size-Height	5.7 mm
Product Lifecycle Status	Active
Packaging	Tube
RoHS	Compliant with Exemption
Lead-Free Status	Lead Free
ECCN Code	EAR99

Similar & Replacement Parts

Product Description

FSBB30CH60CT is an advacned Motion SPM 3 series that Fairchild has newly developed to provide a very compact and high performance inverter solution for AC motor drives in low-power applications such as air conditioners. It combines optimized circuit protections and drives matched to low-loss IGBTs. The system reliability is further enhanced by the integrated under-voltage lock-out and over-current protection. The high speed built-in HVIC provides optocoupler- less single-supply IGBT gate driving capability that further reduces the overall size of the inverter system. Each phase leg current of the inverter can be monitored thanks to three separate negative dc terminals.
Features
---
|
Very low thermal resistance by using Al2O3 DBC
Easy PCB layout thanks to built in bootstrap diodes
600V-30A 3-phase IGBT inverter bridge including control ICs for gate driving and protection
Three separate negative DC-link terminals for inverter current sensing applications
Single-grounded power supply for built-in HVICs
Isolation rating of 2500Vrms/min.
