FSL306LRN - Fairchild

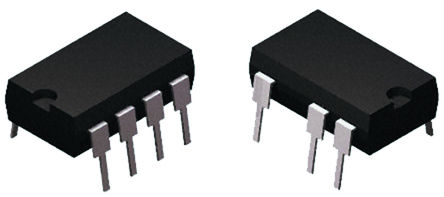

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

FSL306LRN
Manufacturer

Fairchild
ChipWorker Part#

CW114996850
Category

AC to DC Converter, AC/DC Power Module
Package

DIP-8
Description

FSL306LR - Green Mode 26V 50kHz Through Hole Buck Switch - DIP-7
Documentation

Datasheet

FSL306LRN Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

FSL306LRN Specifications

Attribute	Attribute Value

Part Number	FSL306LRN
Manufacturer	Fairchild
ChipWorker Part#	CW114996850
Category	AC to DC Converter, AC/DC Power Module
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	7 Pin
Case/Package	DIP-8
Power Rating	7 W
Number of Outputs	1 Output
Output Voltage	85V ~ 265V
Output Current	450 mA
Breakdown Voltage	650 V
Supply Current	0.8 mA
Rise Time	7.6 ns
Output Power	3W ~ 7W
Switching Frequency	50 kHz
Fall Time	26.1 ns
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage (Max)	26 V
Input Voltage	7V ~ 26V
	expand all
Size-Length	9.77 mm
Size-Width	6.47 mm
Size-Height	3.42 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
HK STC License	NLR

Product Description

Convert to DC easily from the wall outlet by using this FSL306LRN AC to DC converter from Fairchild Semiconductor. This AC to DC power converter supports buck topology. This product comes in rail packaging to keep individual parts separated and protected. This AC to DC power converter has an operating temperature range of -40 °C to 125 °C.
