FSV1045V - ON Semiconductor

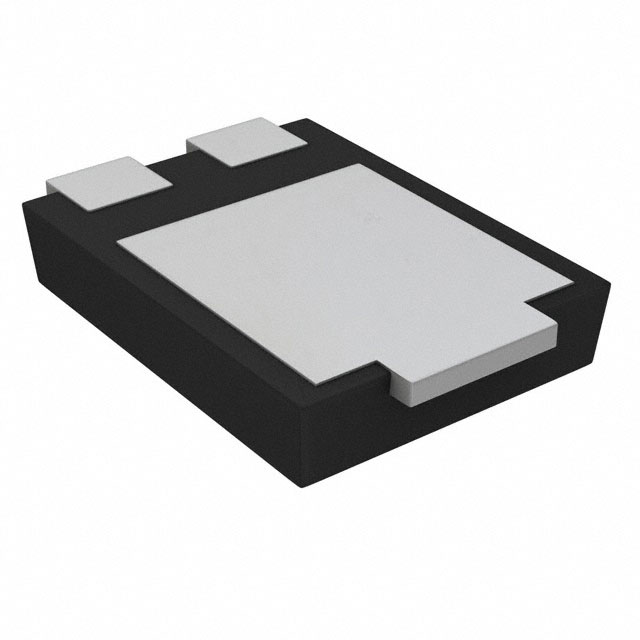

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

FSV1045V
Manufacturer

ON Semiconductor
ChipWorker Part#

CW10044933
Category

Schottky Diode
Package

TO-277-3
Description

10A, 45V Ultra-Low VF Schottky Rectifier
Documentation

Datasheet

FSV1045V Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

FSV1045V Specifications

Attribute	Attribute Value

Part Number	FSV1045V
Manufacturer	ON Semiconductor
ChipWorker Part#	CW10044933
Category	Schottky Diode
Documentation	Datasheet
Number of Pins	3 Pin
Case/Package	TO-277-3
Number of Positions	3 Position
Forward Voltage	0.41 V
Thermal Resistance	100 ℃/W
Forward Current	10000 mA
Max Forward Surge Current (Ifsm)	300 A
Maximum Forward Voltage (Max)	440 mV
Forward Current (Max)	10000 mA
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
	expand all
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	Compliant with Exemption
Lead-Free Status	Lead Free

Product Description

The FSV1045V schottky rectifier offers break-through size and performance. The device is optimized for mobile charger applications. It sinks only 18 mA reverse current at high temperature and provides forward voltage drop of 0.18 V at 1 A operating current in a charger design.All this capability is packed into a small, flat-lead, TO-277 package, optimized for space-constrained applications. The FSV1045V supports a typical Z height of 1.1 mm. It is RoHS compliant and halogen free. It is also qualified for a wave soldering process.
Features
---
|
Ultra-Low Forward Voltage Drop: - 0.41 V Typical at 10 A, TA = 25°C - 0.44 V Maximum at 10 A, TA = 25°C
Low Thermal Resistance
Very Low Profile: Typical Height of 1.1 mm
RoHS Compliant
Halogen Free
Meets MSL 1 per JESD22-A111 Full-Body Solder Immersion
