FXL2SD106BQX - Fairchild

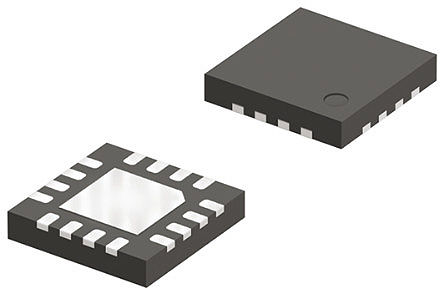

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

FXL2SD106BQX
Manufacturer

Fairchild
ChipWorker Part#

CW116556732
Category

Voltage Level Translator IC
Package

DQFN-16
Description

Voltage Level Translator Bidirectional 1 Circuit 6Channel 100Mbps 16-DQFN (2.5x3.5)
Documentation

Datasheet

FXL2SD106BQX Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

FXL2SD106BQX Specifications

Attribute	Attribute Value

Part Number	FXL2SD106BQX
Manufacturer	Fairchild
ChipWorker Part#	CW116556732
Category	Voltage Level Translator IC
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	16 Pin
Case/Package	DQFN-16
Number of Circuits	1 Circuit
Number of Channels	6 Channel
Number of Bits	6 Bit
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Number of Output Channels	6 Channel
Supply Voltage	1.1V ~ 3.6V
	expand all
Size-Length	3.5 mm
Size-Width	2.5 mm
Size-Height	0.75 mm
Operating Temperature	-40℃ ~ 85℃ (TA)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free

Product Description

* Bi-Directional Interface between Two Levels * 1.1V and 3.6V * Fully Configurable * Inputs and Outputs Track VCC Level * Non-Preferential Power-up; Either VCC May Be Powered-up First * Outputs Remain in 3-State until Active VCC Level is Reached * Outputs Switch to 3-State if Either VCC is at GND * Power-Off Protection * Bus HOLD on Data Inputs Eliminates Need for Pull-up Resistors (Do NOT Use Resistors on the A or B Ports) * OE and CLK IN are Referenced to VCCA Voltage * Packaged in 16-Terminal DQFN (2.5mm x 3.5mm) * Direction Control Not Needed * 80Mbps Throughput Translating between 1.8V and 2.5V * ESD Protection Exceeds * 12kV HBM (B port I/O to GND) (per JESD22-A114 & Mil Std 883e 3015.7) * 8kV HBM (A port I/O to GND) (per JESD22-A114 & Mil Std 883e 3015.7) * 1kV CDM (per ESD STM 5.3)
