FXLA104UMX - Fairchild

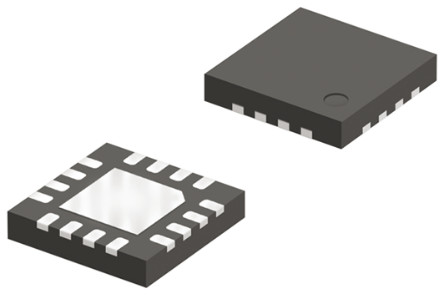

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

FXLA104UMX
Manufacturer

Fairchild
ChipWorker Part#

CW70158714
Category

Voltage Level Translator IC
Package

UFQFN-16
Description

Low-Voltage Dual Supply 4Bit Voltage Translator, 16L,UMLP,QUAD,ULTRATHIN MLP, 1.8 X 2.6MM BODY, 5000/TAPE REEL
Documentation

Datasheet

FXLA104UMX Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

FXLA104UMX Specifications

Attribute	Attribute Value

Part Number	FXLA104UMX
Manufacturer	Fairchild
ChipWorker Part#	CW70158714
Category	Voltage Level Translator IC
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	16 Pin
Case/Package	UFQFN-16
Number of Circuits	1 Circuit
Number of Channels	4 Channel
Number of Bits	4 Bit
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Number of Output Channels	4 Channel
Supply Voltage	1.1V ~ 3.6V
	expand all
Size-Length	1.8 mm
Size-Width	2.6 mm
Size-Height	0.5 mm
Operating Temperature	-40℃ ~ 85℃ (TA)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free

Product Description

The Fairchild Semiconductor FXLA104UMX level translator can control and allow the proper input voltage into your electronic circuits. With a 3-state output, this is power management at its best. This level shifter has an operating temperature range of -40 °C to 85 °C. This product will be shipped in tape and reel packaging so that components can be mounted effectively. This device has a typical operating supply voltage of 1.8|2.5|3.3 V. Its minimum operating supply voltage of 1.1 V, while its maximum is 3.6 V.
