GBU6K - ON Semiconductor

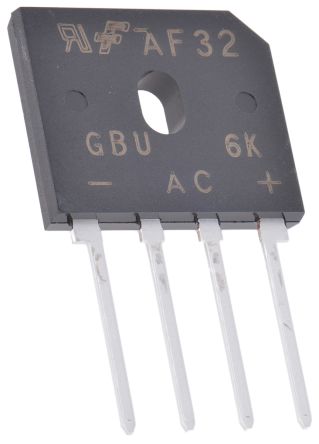

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

GBU6K
Manufacturer

ON Semiconductor
ChipWorker Part#

CW21229500
Category

Bridge Rectifier
Package

SIP-4
Description

6A Bridge Rectifier
Documentation

Datasheet

GBU6K Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

GBU6K Specifications

Attribute	Attribute Value

Part Number	GBU6K
Manufacturer	ON Semiconductor
ChipWorker Part#	CW21229500
Category	Bridge Rectifier
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	4 Pin
Case/Package	SIP-4
Forward Voltage	1V @6A
Power Dissipation	12000 mW
Max Forward Surge Current (Ifsm)	175 A
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	12000 mW
	expand all
Size-Length	22.3 mm
Size-Width	3.56 mm
Size-Height	18.8 mm
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tube
RoHS	Compliant with Exemption
Lead-Free Status	Lead Free
ECCN Code	EAR99

Product Description

Bridge Rectifier Single Phase Standard 800V Through Hole GBU
