GL480E00000F - Sharp

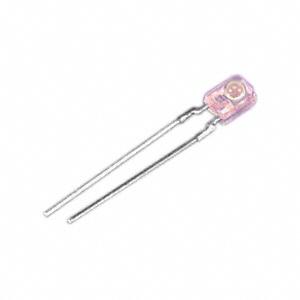

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

GL480E00000F
Manufacturer

Sharp
ChipWorker Part#

CW5832129
Category

Light Source, Emitter
Package

Radial
Description

Infrared LED, 1.6mm, 1Element, 950nm, ROHS COMPLIANT, PLASTIC PACKAGE-2
Documentation

Datasheet

GL480E00000F Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

GL480E00000F Specifications

Attribute	Attribute Value

Part Number	GL480E00000F
Manufacturer	Sharp
ChipWorker Part#	CW5832129
Category	Light Source, Emitter
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	2 Pin
Case/Package	Radial
Power Rating	75 mW
Forward Voltage	1.2 V
Wavelength	950 nm
Viewing Angle	13°
Peak Wavelength	950 nm
Power Dissipation	75 W
Output Power	0.7 mW
Test Current	20 mA
Forward Current	50 mA
Maximum Forward Voltage (Max)	1.2 V
Forward Current (Max)	50 mA
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-25 ℃
Power Dissipation (Max)	75 mW
	expand all
Size-Length	3 mm
Size-Width	1.5 mm
Size-Height	3.8 mm
Lead Length	17.5 mm
Operating Temperature	-25℃ ~ 85℃ (TA)
Product Lifecycle Status	Active
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ECCN Code	EAR99

Product Description

The GL480E00000F is a compact side looking Infrared Emitting Diode with high reliability by chip coating.
