GT21MCBE - C&K Components

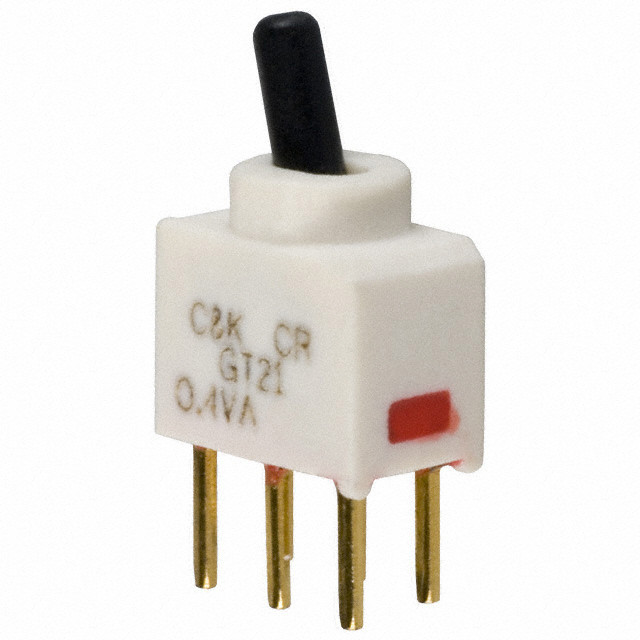

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

GT21MCBE
Manufacturer

C&K Components
ChipWorker Part#

CW4087503
Category

Toggle Switch, Switch Toggle
Package

-
Description

C & K COMPONENTS GT21MCBE Toggle Switch, GT Series, DPDT, On-On, Through Hole, 20V
Documentation

Datasheet

GT21MCBE Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

GT21MCBE Specifications

Attribute	Attribute Value

Part Number	GT21MCBE
Manufacturer	C&K Components
ChipWorker Part#	CW4087503
Category	Toggle Switch, Switch Toggle
Documentation	Datasheet
Mounting Style	Through Hole
Case/Package	-
Contact Plating	Gold
Voltage Rating (DC)	20 V
Voltage Rating (AC)	20 V
Insulation Resistance	1.00 GΩ
Number of Rows	2 Row
Contacts Type	DPDT
Flammability Rating	UL 94 V-0
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-30 ℃
Voltage Rating (DC Max)	20 V
Voltage Rating (AC Max)	20 V
Maximum Contact Resistance (Max)	<50 mΩ
	expand all
Size-Length	7.01 mm
Size-Height	11.2 mm
Contact Material	Copper Alloy
Material	Nylon
Operating Temperature	-30℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
HTS Code	8536509065
ECCN Code	EAR99

Product Description

Sealed Ultraminiature Toggle Switch
