HCF4081 - ST Microelectronics

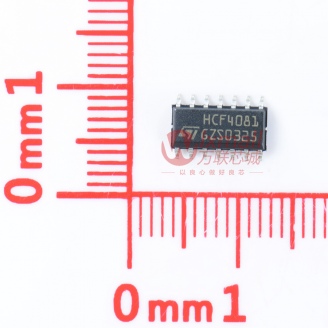

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

HCF4081
Manufacturer

ST Microelectronics
ChipWorker Part#

CW289760565
Package

SOIC14
Description

44081m, And Gate And Quad, 14Pin Soic
Documentation

Datasheet

HCF4081 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

HCF4081 Specifications

Attribute	Attribute Value

Part Number	HCF4081
Manufacturer	ST Microelectronics
ChipWorker Part#	CW289760565
Documentation	Datasheet
Number of Pins	14 Pin
Case/Package	SOIC14
	expand all
Product Lifecycle Status	Unknown
RoHS	RoHS Compliant
Lead-Free Status	Lead Free

Product Description

DESCRIPTION
TheHCC4073B, HCC4081BandHCC4082B(extended temperature range) and the HCF4073B, HCF4081BandHCF4082B(intermediate tempera ture range) are monolithic integrated circuits avail-able in 14-lead dual in-line plastic or ceramic package and plastic micro package.
4073B TRIPLE 3–INPUT AND GATE
4081B QUAD 2–INPUT AND GATE
4082B DUAL 4–INPUT AND GATE
.MEDIUM SPEED OPERATION – tPLH= 85ns (typ.) ; tPHL= 65ns (typ.) AT 10V
.QUIESCENT CURRENT SPECIFIED TO 20V FOR HCC DEVICE
.5V, 10V, AND 15V PARAMETRIC RATINGS
.INPUT CURRENT OF 100nA AT 18V AND 25°C FOR HCC DEVICE
.100% TESTED FOR QUIESCENT CURRENT
.MEETS ALL REQUIREMENTS OF JEDEC TENTATIVE STANDARDN°13A, ”STANDARD SPE
CIFICATIONS FOR DESCRIPTION OF ”B” SERIES CMOS DEVICES”
