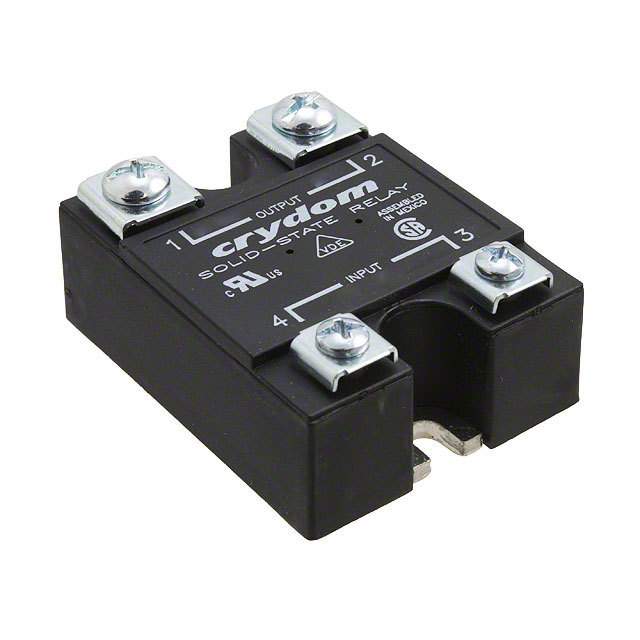

HD4825 ,Solid State Relay - Crydom

The pictures are for reference only, and the specific specifications can be found in the product manual.

Popularity Score

141 points

Part No

HD4825
Manufacturer

Crydom
ChipWorker Part#

CW2100744
Category

Solid State Relay
Package

Hockey Puck
Description

Relay SSR 2mA 32V DC-IN 25A 530V AC-OUT 4Pin
Documentation

Datasheet
Ships from

Moscow
Наличие

1543 pcs In Stock
Estimated Price

$ 37.7

Buy HD4825

Stock is limited and changes quickly. Our 24/7 online sales team is ready to respond to your inquiries and orders at any time.

Real stock check

Best price from distributors

Engineer support

HD4825 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Arrow	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Mouser	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
					{{submitRFQ}}
Chipworker	{{noList.partNo}} {{noList.mfr}}	{{stockAvailability}} {{ search_item }}	{{moq}}	1	6 - 8 {{delivery_date}}

Update Data

Chipworker Certification

ChipWorker Qualifications — ISO 9001, ISO 45001, ISO 14001, MA Certification. Over 11 years of experience, more than 1000 clients in Russia, support for small MOQ

11+ years sourcing experience

1000+ russia customers

ISO certified supplier

Support small MOQ

*Photos of Our Actual 800 m² Warehouse

HD4825 Specifications

Consulting Engineer >>

Attribute	Attribute Value

Part Number	HD4825
Manufacturer	Crydom
ChipWorker Part#	CW2100744
Category	Solid State Relay
Documentation	Datasheet
Mounting Style	Panel, Screw
Number of Pins	4 Pin
Case/Package	Hockey Puck
Current Rating	25 A
Output Voltage	48V ~ 530V
Output Current	25000 mA
Contacts Type	SPST-NO
Load Current	25 A
Input Current	12 mA
Power Dissipation	0.5 W
Resistance	1.50 kΩ
Isolation Voltage	4000 v
Output Voltage (Max)	530 V
Voltage Rating	530 VAC
Operating Voltage (Min)	48 VAC
Operating Voltage (Max)	530 VAC
Input Voltage	32 V
	expand all
Size-Length	45.7 mm
Size-Width	22.9 mm
Size-Height	58.4 mm
Operating Temperature	-40℃ ~ 80℃
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
HTS Code	8536490080
ECCN Code	EAR99

Similar & Replacement Parts

Similar products

Product Description

The HD4825 is a Solid State Relay with aluminium base plate, UL94V-0 housing, SPST-NO contact, zero crossing switching mode and screw terminals. This HD48-series panel mount relay features improved SEMS screw and washer, redesigned housing with anti-rotation barrier. Direct bond copper substrate and direct power lead frame. EMC compliant to level-3.
Epoxy-free design
AC or DC Control
SCR output for heavy industrial loads
1.15Vrms Maximum on-state voltage drop
Current regulated nominal input impedance
4000Vrms Dielectric strength
1/2 cycle ms Turn-on/off maximum time
-40 to 80°C Ambient operating temperature range
Disconnect all power before installing or working with this equipment. Risk of material damage and hot enclosure.
