HD64F2144AFA20 - Renesas Electronics

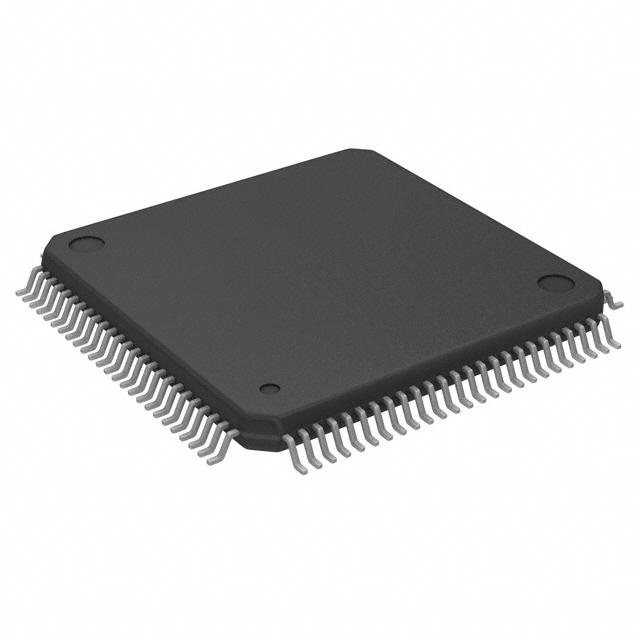

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

HD64F2144AFA20
Manufacturer

Renesas Electronics
ChipWorker Part#

CW150984489
Category

Microcontroller, MCU IC
Package

BFQFP-100
Description

MCU 16Bit H8S CISC 128KB Flash 5V 100Pin PQFP
Documentation

Datasheet

HD64F2144AFA20 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

HD64F2144AFA20 Specifications

Attribute	Attribute Value

Part Number	HD64F2144AFA20
Manufacturer	Renesas Electronics
ChipWorker Part#	CW150984489
Category	Microcontroller, MCU IC
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	100 Pin
Case/Package	BFQFP-100
Supply Voltage (DC)	5.00 V, 5.50 V (max)
Clock Speed	20.0 MHz, 20.0 MHz (max)
RAM Memory Size	4K x 8
Number of I/O Pins	73 IO
Access Time	20.0 µs
Number of ADCs	1 ADC
Operating Temperature (Max)	75 ℃
Operating Temperature (Min)	-20 ℃
Number of DACs	1 DAC
	expand all
Operating Temperature	-20℃ ~ 75℃
Product Lifecycle Status	Unknown
Packaging	Tray
RoHS	Non-Compliant
Lead-Free Status	Contains Lead
