HEF4794BP - NXP

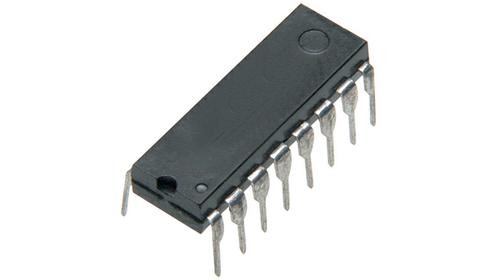

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

HEF4794BP
Manufacturer

NXP
ChipWorker Part#

CW432437403
Package

DIP-16
Description

LED Driver IC 8 Output Linear Shift Register 40mA 16-DIP
Documentation

Datasheet

HEF4794BP Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

HEF4794BP Specifications

Attribute	Attribute Value

Part Number	HEF4794BP
Manufacturer	NXP
ChipWorker Part#	CW432437403
Documentation	Datasheet
Mounting Style	Through Hole
Case/Package	DIP-16
Frequency	28 MHz
Number of Outputs	8 Output
Supply Voltage (Max)	15 V
Supply Voltage (Min)	3 V
	expand all
Operating Temperature	-40℃ ~ 125℃ (TA)
Product Lifecycle Status	Unknown
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
