HLMP-2400 ,Message Display, Character Display - Broadcom

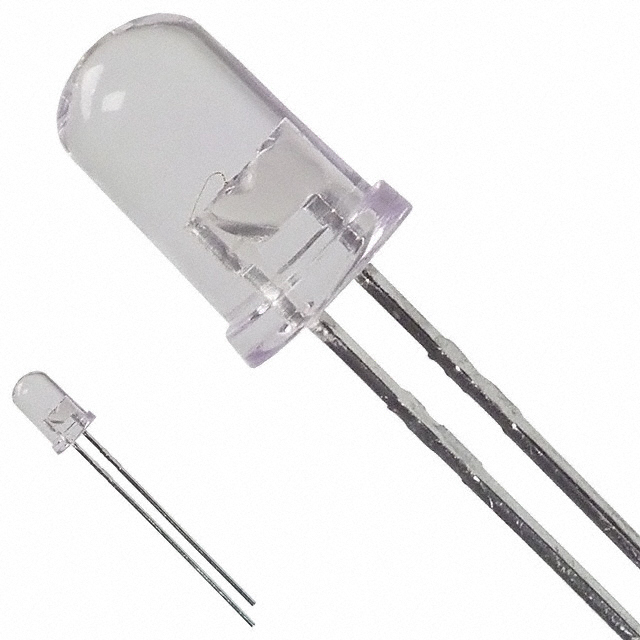

The pictures are for reference only, and the specific specifications can be found in the product manual.

Popularity Score

77 points

Part No

HLMP-2400
Manufacturer

Broadcom
ChipWorker Part#

CW44660529
Category

Message Display, Character Display
Package

SIP
Description

LED Bar Graph Array, Yellow, 2.1V, 20mA, 2, 20mcd, 8.89mm x 3.81mm
Documentation

Datasheet
Ships from

Moscow
Наличие

13 pcs In Stock
Estimated Price

$ 1.49

Buy HLMP-2400

Stock is limited and changes quickly. Our 24/7 online sales team is ready to respond to your inquiries and orders at any time.

Real stock check

Best price from distributors

Engineer support

HLMP-2400 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Arrow	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Mouser	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
					{{submitRFQ}}
Chipworker	{{noList.partNo}} {{noList.mfr}}	{{stockAvailability}} {{ search_item }}	{{moq}}	1	6 - 8 {{delivery_date}}

Update Data

Chipworker Certification

ChipWorker Qualifications — ISO 9001, ISO 45001, ISO 14001, MA Certification. Over 11 years of experience, more than 1000 clients in Russia, support for small MOQ

11+ years sourcing experience

1000+ russia customers

ISO certified supplier

Support small MOQ

*Photos of Our Actual 800 m² Warehouse

HLMP-2400 Specifications

Consulting Engineer >>

Attribute	Attribute Value

Part Number	HLMP-2400
Manufacturer	Broadcom
ChipWorker Part#	CW44660529
Category	Message Display, Character Display
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	4 Pin
Case/Package	SIP
Number of Contacts	4 Contact
Forward Voltage	2.1 V
Wavelength	585 nm
Luminous Intensity	20 mcd
Peak Wavelength	583 nm
Power Dissipation	85 mW
Forward Current	20 mA
Maximum Forward Voltage (Max)	2.6 V
Forward Current (Max)	25 mA
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	85 mW
Voltage Rating	2.1 V
	expand all
Size-Length	8.89 mm
Size-Height	6.22 mm
Color	Yellow
Product Lifecycle Status	Active
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC

Similar & Replacement Parts

Similar products

Product Description

The HLMP-2XXX series light bars are rectangular
light sources designed for a variety of applications where a large
bright source of light is required. These light bars are configured in
single-in-line that contain single light emitting areas.The LEDs have their
p-n junctions diffused into a GaAsP epitaxial layer on a GaP substrate.
### Features
Large Bright, Uniform Light Emitting Areas
Categorized for Light Output
Yellow Categorized for Dominant Wavelength
Excellent ON-OFF Contrast
X-Y Stackable
Flush Mountable
Can be Used with Panel and Legend Mounts
Light Emitting Surface Suitable for Legend Attachment per
Application Note 1012
