HMC424ALP3E - ADI

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

HMC424ALP3E
Manufacturer

ADI
ChipWorker Part#

CW7958786
Package

QFN-16
Description

6Bits 0.5dBStep 31.5dB Digital Attenuator 13GHz 16Pin QFN EP T/R
Documentation

Datasheet

HMC424ALP3E Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

HMC424ALP3E Specifications

Attribute	Attribute Value

Part Number	HMC424ALP3E
Manufacturer	ADI
ChipWorker Part#	CW7958786
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	16 Pin
Case/Package	QFN-16
Supply Current	5 mA
Number of Channels	1 Channel
Number of Bits	6 Bit
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-55 ℃
	expand all
Size-Length	3.1 mm
Size-Width	3.1 mm
Size-Height	0.95 mm
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Contains Lead

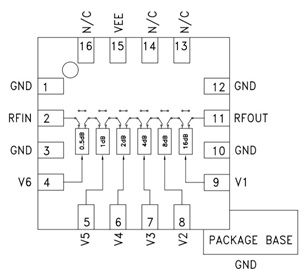

Product Description

Product Details
The HMC424ALP3E is a broadband 6-bit GaAs IC digital attenuator in low cost leadless surface mount package. Covering DC to 13 GHz, the insertion loss is less then 4 dB typical. The attenuator bit values are 0.5 (LSB), 1, 2, 4, 8, and 16 dB for a total attenuation of 31.5 dB. Attenuation accuracy is excellent at ± 0.5 dB typical step error with an IIP3 of +38 dBm. Six control voltage inputs, toggled between 0 and -5V, are used to select each attenuation state. A single Vee bias of -5V allows operation at frequencies down to DC.
Applications
Basestation Infrastructure
Fiber Optics & Broadband Telecom
Microwave & VSAT Radios
Military & Space
Test Instrumentation
### Features and Benefits
0.5 dB LSB Steps to 31.5 dB
Single Control Line Per Bit
±0.5 dB Typical Bit Error
9mm² Leadless SMT Plastic Package
