HMC547LP3 - ADI

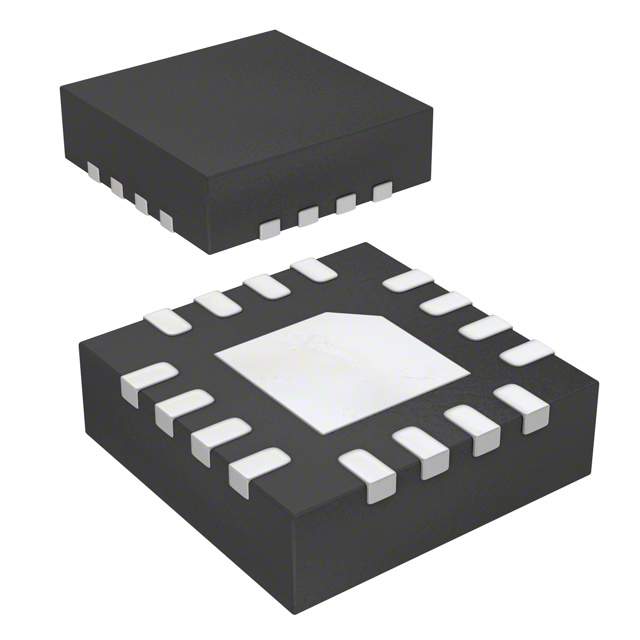

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

HMC547LP3
Manufacturer

ADI
ChipWorker Part#

CW66454903
Category

RF Module
Package

QFN-16
Description

RF Switch SPDT 0MHz to 20GHz 33dB 16Pin QFN EP T/R
Documentation

Datasheet

HMC547LP3 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

HMC547LP3 Specifications

Attribute	Attribute Value

Part Number	HMC547LP3
Manufacturer	ADI
ChipWorker Part#	CW66454903
Category	RF Module
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	16 Pin
Case/Package	QFN-16
Frequency	20000 MHz
Supply Voltage (DC)	0.00 V (max), -5.00 V (min)
Number of Positions	16 Position
Power Dissipation	260 mW
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	260 mW
Supply Voltage (Max)	0 V
	expand all
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	End of Life
Packaging	Each
RoHS	Non-Compliant
Lead-Free Status	Contains Lead
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99

Product Description

RF Switch IC General Purpose SPDT 20GHz 50Ohm 16-QFN (3x3)
