HMC634 - ADI

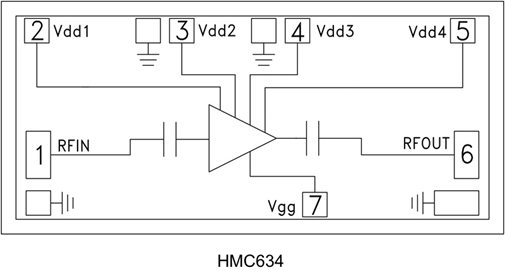

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

HMC634
Manufacturer

ADI
ChipWorker Part#

CW39554204
Category

Amplifier chip
Description

RF Amp Single Driver Amp 20GHz 5.5V 7Pin Die Tray
Documentation

Datasheet

HMC634 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

HMC634 Specifications

Attribute	Attribute Value

Part Number	HMC634
Manufacturer	ADI
ChipWorker Part#	CW39554204
Category	Amplifier chip
Documentation	Datasheet
Number of Pins	7 Pin
Frequency	5GHz ~ 20GHz
Supply Voltage (DC)	4.50V (min)
Supply Current	180 mA
Power Dissipation	1070 mW
Gain	22 dB
Test Frequency	5GHz ~ 20GHz
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	1070 mW
Supply Voltage	5 V
Supply Voltage (Max)	5.5 V
Supply Voltage (Min)	4.5 V
	expand all
Operating Temperature	-55℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2016/06/20

Product Description

Product Details
The HMC634 is a GaAs MMIC PHEMT Driver Amplifier die which operates between 5 and 20 GHz. The amplifier provides up to 22 dB of gain, +31 dBm Output IP3, and up to +23 dBm of output power at 1 dB gain compression, while requiring 180 mA from a +5V supply. The HMC634 is an ideal driver amplifier for microwave radio applications from 5 to 20 GHz, and may be biased at +5V, 130 mA to provide 2 dB lower gain with improved PAE. The HMC634 amplifier I/O’s are DC blocked and internally matched to 50 Ohms facilitating easy integration into Multi-Chip-Modules (MCMs). All data is taken with die connected at input and output RF ports via one 1 mil wedge bond with minimal length of 0.31 mm (12 mils).
Applications
Point-to-Point Radios
Point- to-Multi-Point Radios & VSAT
LO Driver for Mixers
Military & Space
### Features and Benefits
Gain: 22 dB
P1dB: +23 dBm
Output IP3: +31 dBm
Saturated Power: 24 dBm @ 23% PAE
Supply Voltage: +5 V @ 180 mA
50 Ohm Matched Input/Output
Die Size: 2.07 x 0.97 x
0.10 mm
