HMC907LP5E - ADI

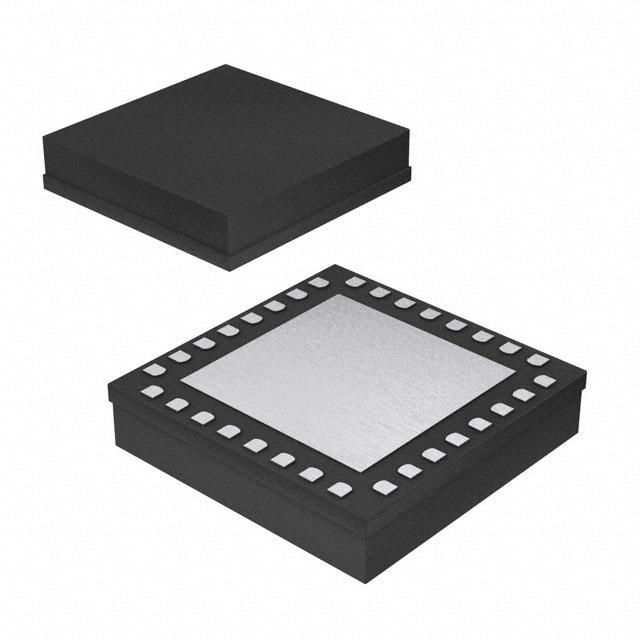

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

HMC907LP5E
Manufacturer

ADI
ChipWorker Part#

CW99886590
Category

Amplifier chip
Package

SMT-32
Description

RF Amp Single Power Amp 22GHz 11V 32Pin QFN EP T/R
Documentation

Datasheet

HMC907LP5E Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

HMC907LP5E Specifications

Attribute	Attribute Value

Part Number	HMC907LP5E
Manufacturer	ADI
ChipWorker Part#	CW99886590
Category	Amplifier chip
Documentation	Datasheet
Number of Pins	32 Pin
Case/Package	SMT-32
Frequency	200MHz ~ 22GHz
Supply Voltage (DC)	10.0V (max)
Supply Current	350 mA
Number of Channels	1 Channel
Number of Positions	32 Position
Power Dissipation	4.1 W
Gain	11.5 dB
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	4100 mW
Supply Voltage	10 V
Supply Voltage (Max)	10 V
	expand all
Size-Height	0.95 mm
Product Lifecycle Status	End of Life
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Contains Lead
REACH SVHC Compliance	No SVHC
Mil-Spec	Yes
REACH SVHC Compliance Edition	2015/12/17

Product Description

The HMC907LP5E is a GaAs MMIC PHEMT distributed Power Amplifier which operates between 0.2 and 22GHz. This self-biased power amplifier provides 12dB of gain, +36dBm output IP3 and +26dBm of output power at 1dB gain compression while requiring only 350mA from a +10V supply. Gain flatness is excellent at ±0.7dB from 0.2 to 22GHz making the HMC907LP5E ideal for EW, ECM, radar and test equipment applications. The HMC907LP5E amplifier I/Os are internally matched to 50R facilitating integration into multi-chip-modules (MCMs) and requires no external matching components.
10V at 350mA Single supply
50R Matched input/output
