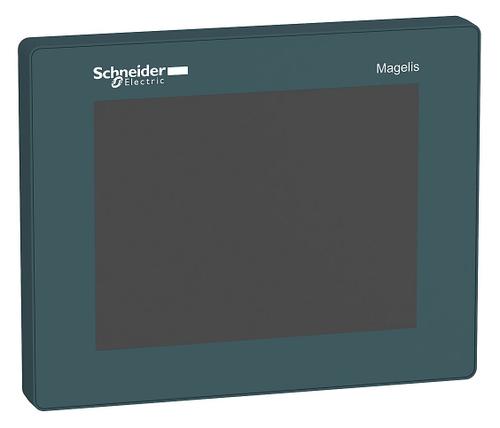

HMISCU8A5 - Schneider Electric

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

HMISCU8A5
Manufacturer

Schneider Electric
ChipWorker Part#

CW207433130
Description

5.7 Color Touch Controller Panel - Dig16 inputs/10Outputs , Ethernet, USB, Se
Documentation

Datasheet

HMISCU8A5 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

HMISCU8A5 Specifications

Attribute	Attribute Value

Part Number	HMISCU8A5
Manufacturer	Schneider Electric
ChipWorker Part#	CW207433130
Documentation	Datasheet
Supply Voltage (DC)	24.0V (min)
Voltage Rating	24 VDC
Supply Voltage (Max)	28.8 V
Supply Voltage (Min)	24 V
	expand all
Product Lifecycle Status	Active
RoHS	Non-Compliant

Product Description

Magelis™ small SCU, state-of-the-art graphic controllers for a wide variety of industrial applications.
The Magelis™ small SCU range includes 2 sizes of 65k color TFT screen displays to deliver superior quality visualization. LED backlight allows dimming and energy efficiency. The Magelis™ SCU Small HMI controllers integrate full HMI functionality combined with PLC and on-board I/O. Serial, Ethernet, CanOpen and USB communications ports provide class leading connectivity to control systems and peripherals. They feature the same innovative 22 mm mounting system as the Magelis™ STU Small panels.
**Features:**
* LED Backlight
* Compact All-In-One Unit
* Made with Recycled Plastic
* 22 mm Mounting System
* USB Ports
* USB Mini B Port
**Benefits:**
* Low Energy and Brilliant Color Display
* Controller is Included, So No Need to Purchase a PLC
* Reduce Overall Environmental Impact
* Quick Installation
* Easy Field Updates
* Download of HMI Program with Standard Cable
* Connects to Uni-TE, Modbus®, Modbus TCP/IP, and for PLC Brands: Mitsubishi®, Omron®, Allen-Bradley®, and Siemens and More via Serial or Ethernet
