HOA1406-001 ,Infrared Sensor - Honeywell
The pictures are for reference only, and the specific specifications can be found in the product manual.
Popularity Score
72 points
-
Part NoHOA1406-001
-
ManufacturerHoneywell
-
ChipWorker Part#CW16900315
-
CategoryInfrared Sensor
-
PackagePre-Wired
-
DescriptionDiffuse Photoelectric Sensor, 5.08mm Min, 5.08mm Max, Through Hole Mount, HERMETIC SEALED, METAL CAN PACKAGE-4
-
DocumentationDatasheet
-
Ships fromMoscow
-
НаличиеIn Stock
-
Estimated Price$ 25.21
Payment Methods and Delivery
{{ estimate }}
Buy HOA1406-001
Stock is limited and changes quickly. Our 24/7 online sales team is ready to respond to your inquiries and orders at any time.
Real stock check
Best price from distributors
Engineer support
HOA1406-001 Global Supplier
| {{ supplierTable.supplier }} | {{ supplierTable.part }} | {{ supplierTable.availability }} | MOQ | {{ supplierTable.delivery_date }} | {{ supplierTable.buy }} | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
{{ skuList.vendorName }}
|
{{ noList.partNo }}
{{ strFormat(skuList.part_no) }}
{{ skuList.part_no }}
{{ skuList.mfrEn }}
|
{{ numFormat(skuList.stockQty) }}
{{ search_item }}
|
{{ skuList.moq }} - |
{{ceilNumber(skuList.minDeliveryDay,skuList.maxDeliveryDay)}} {{delivery_date}}
6 {{delivery_date}}
|
{{ formatQuantity(priceList.quantity) }}
{{currencySymbol}}{{ ToEffectiveNum(toDisplay(priceList.price, activeCurrency)) }}
{{viewMore}}
|
|
{{ skuList.vendorName }}
|
{{ skuList.part_no }}
{{ skuList.mfrEn }}
{{ noList.partNo }}
{{ noList.mfr }}
|
{{ numFormat(skuList.stockQty) }}
{{ search_item }}xx
{{ low_stock_text }}
|
1 |
{{weeks_text}}
|
{{ formatQuantity(priceList.quantity) }}
{{currencySymbol}}{{ ToEffectiveNum(toDisplay(priceList.price, activeCurrency)) }}
{{viewMore}}
|
{{price_on_request_text}} | {{currencySymbol}}{{UpToFourDecimals(toDisplay(priceCalc, activeCurrency),skuList.rate)}} |
|
|
{{viewMore}}
|
|||||||||||||||
|
{{viewMore}}
|
|||||||||||||||
|
DigiKey
|
{{noList.partNo}}
{{noList.mfr}}
|
{{ low_stock_text }}
|
1 | {{weeks_text}} | {{price_on_request_text}} | {{currencySymbol}}{{UpToFourDecimals(toDisplay(priceCalc, activeCurrency),1)}} |
|
||||||||
|
Arrow
|
{{noList.partNo}}
{{noList.mfr}}
|
{{ low_stock_text }}
|
1 | {{weeks_text}} | {{price_on_request_text}} | {{currencySymbol}}{{UpToFourDecimals(toDisplay(priceCalc, activeCurrency),0.96)}} |
|
||||||||
|
Mouser
|
{{noList.partNo}}
{{noList.mfr}}
|
{{ low_stock_text }}
|
1 | {{weeks_text}} | {{price_on_request_text}} | {{currencySymbol}}{{UpToFourDecimals(toDisplay(priceCalc, activeCurrency),0.92)}} |
|
||||||||
|
{{submitRFQ}}
|
|||||||||||||||
|
Chipworker
|
{{noList.partNo}}
{{noList.mfr}}
|
{{stockAvailability}}
{{ search_item }}
|
{{moq}} | 1 | 6 - 8 {{delivery_date}} | {{price_on_request_text}} | {{currencySymbol}}{{UpToFourDecimals(toDisplay(priceCalc, activeCurrency),1)}} |
|
|||||||
{{ apiText }}{{ apiTime }}(UTC+8)
Update Data
Chipworker Certification
11+ years sourcing experience
1000+ russia customers
ISO certified supplier
Support small MOQ
*Photos of Our Actual 800 m² Warehouse
HOA1406-001 Specifications
Consulting Engineer >>| Attribute | Attribute Value | |
|---|---|---|
| Part Number | HOA1406-001 | |
| Manufacturer | Honeywell | |
| ChipWorker Part# | CW16900315 | |
| Category | Infrared Sensor | |
| Documentation | Datasheet | |
| Mounting Style | Through Hole | |
| Number of Pins | 4 Pin | |
| Case/Package | Pre-Wired | |
| Voltage Rating (DC) | 30.0 V | |
| Output Voltage | 30 V | |
| Number of Channels | 1 Channel | |
| Forward Voltage | 1.6 V | |
| Input Current | 40 mA | |
| Power Dissipation | 75 mW | |
| Rise Time | 15000 ns | |
| Breakdown Voltage (Collector to Emitter) | 15 V | |
| Forward Current | 50 mA | |
| Reverse Breakdown Voltage | 3 V | |
| Forward Current (Max) | 50 mA | |
| Fall Time | 15 µs | |
| Fall Time (Max) | 15000 ns | |
| Fall Time (Max) | 15000 ns | |
| Operating Temperature (Max) | 100 ℃ | |
| Operating Temperature (Min) | -40 ℃ | |
| Power Dissipation (Max) | 80 mW | |
| expand all | ||
| Size-Length | 15.49 mm | |
| Size-Width | 2.79 mm | |
| Size-Height | 24.13 mm | |
| Operating Temperature | -40℃ ~ 100℃ | |
| Housing Material | Polycarbonate | |
| Product Lifecycle Status | Active | |
| Packaging | Bulk | |
| RoHS | RoHS Compliant | |
| Lead-Free Status | Lead Free | |
| REACH SVHC Compliance | No SVHC | |
| REACH SVHC Compliance Edition | 2014/06/16 | |
| HTS Code | 8541408000 | |
| ECCN Code | EAR99 |

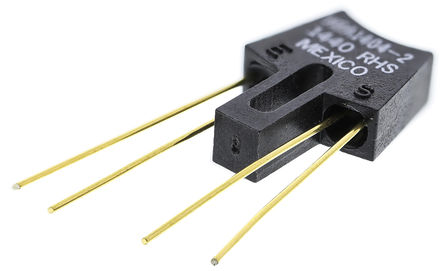

Similar & Replacement Parts
Similar products
Product Description

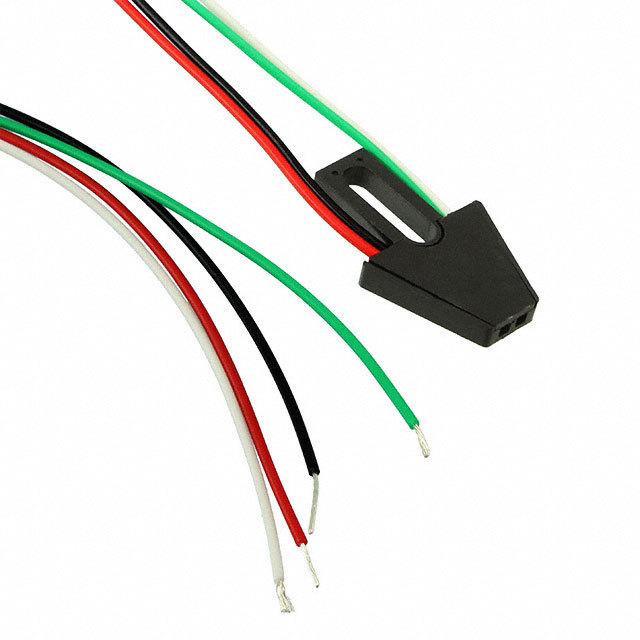

- The HOA1406 series Reflective Sensor consists of an infrared emitting diode facing an NPN silicon phototransistor or photodarlington encased side-by-side on converging optical axes, in a black thermoplastic housing. The detector responds to radiation from the IRED only when a reflective object passes within its field of view. This low profile sensor is ideally suited for applications where space is limited or stacking of sensors is required. It employs hermetically sealed metal-can packaged components. The housing material is polycarbonate and is soluble in chlorinated hydrocarbons and ketones. Recommended cleaning agents are methanol and isopropanol.
- Choice of phototransistor or photodarlington output
- Low profile package
- Hermetic style emitter and detector
- Focused for maximum response
- 24" (610mm) Minimum 26 AWG Teflon insulated lead wires
