IAR3F1200 - Apem Components

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

IAR3F1200
Manufacturer

Apem Components
ChipWorker Part#

CW44237708
Category

Pushbutton Switch, Switch Push button
Description

Switch; P/B; Sealed; SPST-NO; OFF-MOM; Non-Illum; Rnd; Blk Actuator; 2A; 24VDC; 16mm; Wire
Documentation

Datasheet

IAR3F1200 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

IAR3F1200 Specifications

Attribute	Attribute Value

Part Number	IAR3F1200
Manufacturer	Apem Components
ChipWorker Part#	CW44237708
Category	Pushbutton Switch, Switch Push button
Documentation	Datasheet
Mounting Style	Panel
Voltage Rating (DC)	24 V
Actuator Type	Button
Current Rating	2A (DC)
Insulation Resistance	100 MΩ
Number of Rows	1 Row
Orientation	Vertical
Contacts Type	SPST-NO
Contact Resistance	100 mΩ
Contact Current Rating	2.00 A
Current Rating (Max)	2A @24VDC
Operating Temperature (Max)	65 ℃
Operating Temperature (Min)	-20 ℃
Voltage Rating	24 VDC
Maximum Contact Resistance (Max)	100 mΩ
	expand all
Size-Length	19.8 mm
Size-Width	19.8 mm
Size-Height	22 mm
Color	Black
Contact Material	Silver
Operating Temperature	-20℃ ~ 65℃
Housing Material	Thermoplastic
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2016/06/20

Product Description

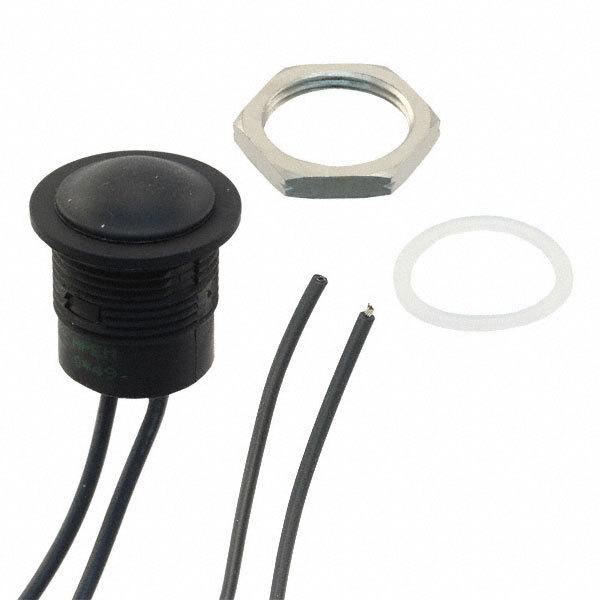

The IAR3F1200 is a single-pole single-throw (SPST) NO low profile sealed Pushbutton Switch with round black polyurethane actuator and flying leads. The IA series front panel-mounted switch comes with thermoplastic case/bushing and gold-plated silver contacts.
Resistant to frost, sand and hydrocarbons
100mR Maximum initial contact resistance
1000000 cycles Mechanical life
500Vrms Dielectric strength
