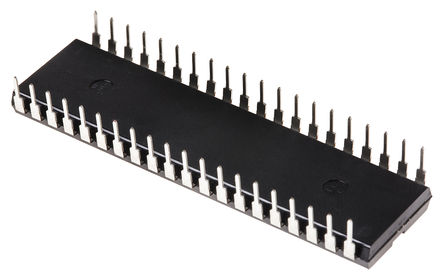

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

ICL7107CPLZ
Manufacturer

Intersil
ChipWorker Part#

CW1557607
Category

Analog to Digital, ADC IC
Package

DIP-40
Description

INTERSIL ICL7107CPLZ Analog to Digital Converter, Dual, 3.5Bit, 3 SPS, Dual (+/-), -5V, 5V, DIP
Documentation

Datasheet

ICL7107CPLZ Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

ICL7107CPLZ Specifications

Attribute	Attribute Value

Part Number	ICL7107CPLZ
Manufacturer	Intersil
ChipWorker Part#	CW1557607
Category	Analog to Digital, ADC IC
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	40 Pin
Case/Package	DIP-40
Supply Voltage (DC)	-5.00 V (min)
Supply Current	1.00 mA
Number of Circuits	1 Circuit
Number of Channels	1 Channel
Number of Positions	40 Position
Number of Bits	3 Bit
Power Dissipation	10 mW
Sample Rate	3 SPS
Power Consumption	10 mW
Number of ADCs	1 ADC
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	0 ℃
Number of Input Channels	1 Channel
Supply Voltage	5 V
Supply Voltage (Max)	5 V
Input Voltage	0.2V, 2V
	expand all
Size-Length	53.2 mm
Size-Width	14.73 mm
Size-Height	4.95 mm
Operating Temperature	0℃ ~ 70℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99

Product Description

The ICL7107CPLZ is a high performance, low power, 3.5 digit A/D converter in 40 pin DIP package. It includes seven segment decoder, display drivers, reference and clock. The ICL7107 directly drives an instrument size light emitting diode (LED) display. It has auto zero to less than 10µV, zero drift of less than 1µV/°C, input bias current of 10pA and rollover error of less than one count. True differential inputs and reference are useful in all systems but give the designer an uncommon advantage when measuring load cells, strain gauges and other bridge type transducers.
Guaranteed zero reading for 0V input on all scales
True polarity at zero for precise null detection
1pA typical input current
Low noise of less than 15µV (peak to peak)
Typical conversion rate of 3SPS
Designed to work from ±5V supply
Low power dissipation of typically less than 10mW
No additional active circuits required
Enhanced display stability
Operating temperature range from 0°C to 70°C
