ICL7136CM44 - Intersil

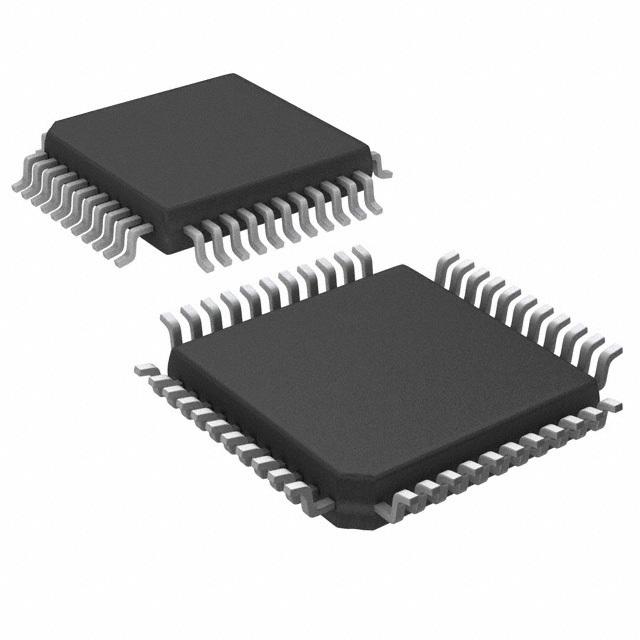

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

ICL7136CM44
Manufacturer

Intersil
ChipWorker Part#

CW116474982
Category

Analog to Digital, ADC IC
Package

QFP-44
Description

1CH DUAL-SLOPE ADC, PARALLEL ACCESS, PQFP44, 10 X 10MM, PLASTIC, MS-022-AB, MQFP-44
Documentation

Datasheet

ICL7136CM44 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

ICL7136CM44 Specifications

Attribute	Attribute Value

Part Number	ICL7136CM44
Manufacturer	Intersil
ChipWorker Part#	CW116474982
Category	Analog to Digital, ADC IC
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	44 Pin
Case/Package	QFP-44
Supply Current	70 µA
Number of Circuits	1 Circuit
Number of Bits	3 Bit
Sample Rate	3.00 Hz
Supply Voltage	9 V
	expand all
Operating Temperature	0℃ ~ 70℃
Product Lifecycle Status	Obsolete
Packaging	Tray
RoHS	Non-Compliant
Lead-Free Status	Contains Lead

Product Description

The Intersil ICL7136 is a high performance, low power 31/2 digit, A/D converter. Included are seven segment decoders, display drivers, a reference, and a clock. The ICL7136 is designed to interface with a liquid crystal display (LCD) and includes a multiplexed backplane drive.
The ICL7136 brings together a combination of high accuracy, versatility, and true economy. It features auto-zero to less than 10µV, zero drift of less than 1µV/oC, input bias current of 10pA (Max), and rollover error of less than one count. True differential inputs and reference are useful in all systems, but give the designer an uncommon advantage when measuring load cells, strain gauges and other bridge type transducers. Finally, the true economy of single power supply operation, enables a high performance panel meter to be built with the addition of only 10 passive components and a display.
Features
• First Reading Overrange Recovery in One Conversion Period
• Guaranteed Zero Reading for 0V Input on All Scales
• True Polarity at Zero for Precise Null Detection
• 1pA Typical Input Current
• True Differential Input and Reference, Direct Display Drive
- LCD ICL7136
• Low Noise - Less Than 15µVP-P
• On Chip Clock and Reference
• No Additional Active Circuits Required
• Low Power - Less Than 1mW
• Surface Mount Package Available
• Drop-In Replacement for ICL7126, No Changes Needed
• Pb-Free Plus Anneal Available (RoHS Compliant)
