IDH05G120C5XKSA1 - Infineon

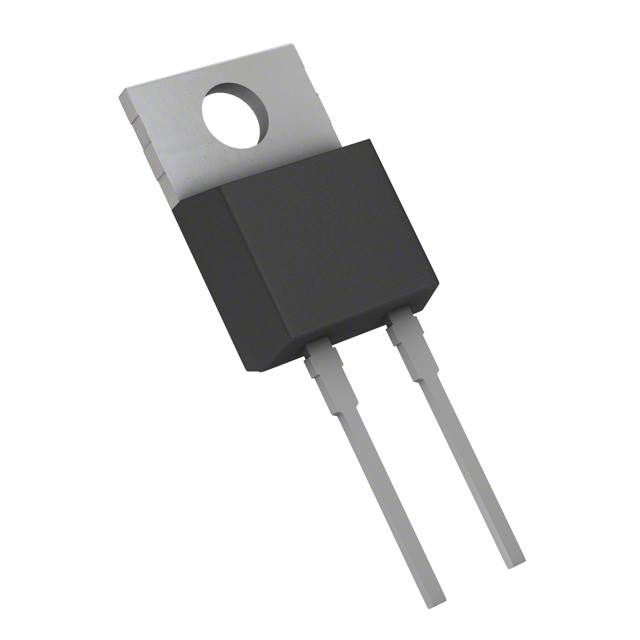

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

IDH05G120C5XKSA1
Manufacturer

Infineon
ChipWorker Part#

CW15159071
Category

Power Diode
Package

TO-220-2
Description

Diode Schottky 1.2kV 19.1A 2Pin(2+Tab) TO-220 Tube
Documentation

Datasheet

IDH05G120C5XKSA1 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

IDH05G120C5XKSA1 Specifications

Attribute	Attribute Value

Part Number	IDH05G120C5XKSA1
Manufacturer	Infineon
ChipWorker Part#	CW15159071
Category	Power Diode
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	2 Pin
Case/Package	TO-220-2
Power Rating	109 W
Load Current	5 A
Forward Voltage	1.5 V
Power Dissipation	109 W
Reverse recovery time	0 ns
Forward Current	19100 mA
Max Forward Surge Current (Ifsm)	59 A
Forward Current (Max)	19100 mA
Operating Temperature (Max)	175 ℃
Operating Temperature (Min)	-55 ℃
Junction Temperature (Max)	175 ℃
Power Dissipation (Max)	109000 mW
	expand all
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free

Product Description

IDH05G120C5, SP000974868
