IFX25401TEVATMA1 - Infineon

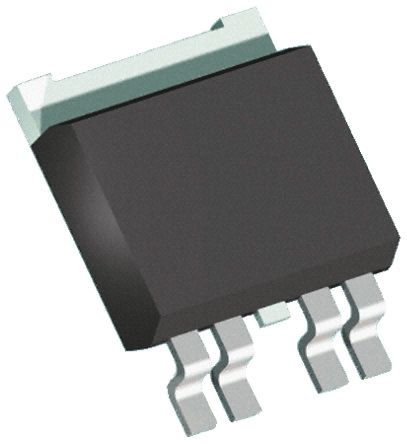

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

IFX25401TEVATMA1
Manufacturer

Infineon
ChipWorker Part#

CW51122070
Category

Voltage Regulator
Package

TO-252
Description

INFINEON IFX25401TEVATMA1 LDO Voltage Regulator, Adjustable, 4.5V to 40V in, 250mV drop, 2.5V to 20V/0.4A out, TO-252-5
Documentation

Datasheet

IFX25401TEVATMA1 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

IFX25401TEVATMA1 Specifications

Attribute	Attribute Value

Part Number	IFX25401TEVATMA1
Manufacturer	Infineon
ChipWorker Part#	CW51122070
Category	Voltage Regulator
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	5 Pin
Case/Package	TO-252
Number of Outputs	1 Output
Output Voltage	2.5V ~ 20V
Output Current	400 mA
Number of Positions	5 Position
Quiescent Current	220 µA
voltage rating	250 mV
Input Voltage (Max)	40 V
Input Voltage (Min)	4.5 V
Output Voltage (Max)	20 V
Output Voltage (Min)	2.5 V
Output Current (Max)	0.4 A
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Accuracy	±2 %
	expand all
Size-Length	6.5 mm
Size-Width	6.22 mm
Size-Height	2.3 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Unknown
Packaging	Cut Tape (CT)
RoHS	Compliant with Exemption
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17

Product Description

The IFX25401TEV is a monolithic integrated low-dropout Voltage Regulator for load currents up to 400mA. An input voltage up to 40V is regulated to an adjustable voltage with a precision of ±2%. The device is designed for harsh environments. Therefore it is protected against overload, short circuit and overtemperature conditions by the implemented output current limitation and the overtemperature shutdown circuit. The adjustable output can be configured to regulate between 2.5 and 20V. Due to its very low quiescent current the IFX25401 is dedicated for use in applications permanently connected to a battery. In addition the device can be switched off via the enable input which reduces the current consumption to less than 10µA.
Output current limitation
Reverse polarity protection
400mA Output current capability
