IHLP2525AHER4R7M01 - VISHAY

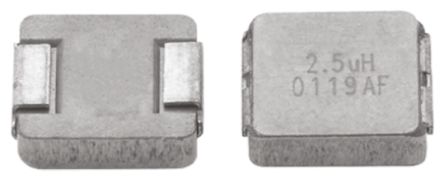

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

IHLP2525AHER4R7M01
Manufacturer

VISHAY
ChipWorker Part#

CW39671430
Category

Inductor Surface Mount
Package

2525
Description

2525 4.7uH ±20% 3A
Documentation

Datasheet

IHLP2525AHER4R7M01 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

IHLP2525AHER4R7M01 Specifications

Attribute	Attribute Value

Part Number	IHLP2525AHER4R7M01
Manufacturer	VISHAY
ChipWorker Part#	CW39671430
Category	Inductor Surface Mount
Documentation	Datasheet
Mounting Style	Surface Mount
Case/Package	2525
Current Rating	3 A
Capacitance Tolerance	±20 %
Inductance	4.7 µH
Self Resonant Frequency	25 MHz
Part Family	IHLP
Inductance Tolerance	±20 %
Test Frequency	100 kHz
DC Resistance (DCR)	≤78 mΩ
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-55 ℃
Resistance (DC Max)	0.078 Ω
	expand all
Size-Length	6.86 mm
Size-Width	6.47 mm
Size-Height	1.8 mm
Operating Temperature	-55℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ECCN Code	EAR99

Product Description

The IHLP-2525AH-01 series from Vishay are surface mount low profile, high current inductor. The inductance value ranging from 0.1µH to 4.7µH. Typical applications include PDA / notebook / desktop / server, high current POL converters, power supplies, Battery powered devices, DC/DC converters.
