IHLP2525CZER1R0M5A - VISHAY

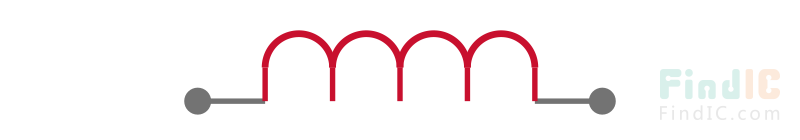

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

IHLP2525CZER1R0M5A
Manufacturer

VISHAY
ChipWorker Part#

CW77659939
Category

Inductor Surface Mount
Package

2525
Description

Inductor Power Shielded Wirewound 1uH 20% 100kHz Powdered Iron 12A 8.45mOhm DCR 2525 Automotive T/R
Documentation

Datasheet

IHLP2525CZER1R0M5A Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

IHLP2525CZER1R0M5A Specifications

Attribute	Attribute Value

Part Number	IHLP2525CZER1R0M5A
Manufacturer	VISHAY
ChipWorker Part#	CW77659939
Category	Inductor Surface Mount
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package	2525
Current Rating	12 A
Capacitance Tolerance	±20 %
Inductance	1 µH
Test Frequency	100 kHz
DC Resistance (DCR)	0.00845 Ω
Operating Temperature (Max)	155 ℃
Operating Temperature (Min)	-55 ℃
Resistance (DC Max)	8.45 mΩ
	expand all
Size-Length	6.86 mm
Size-Width	6.48 mm
Size-Height	3 mm
Operating Temperature	-55℃ ~ 155℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free

Product Description

IHLP2525 Series 1 uH ±20% 12 A 8.45 mO SMT Shielded Low Profile Power Inductor
