IHLP4040DZER101M11 - VISHAY

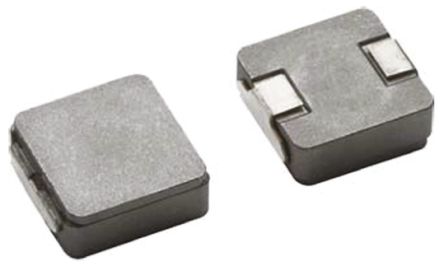

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

IHLP4040DZER101M11
Manufacturer

VISHAY
ChipWorker Part#

CW21684539
Category

Inductor
Package

SMD
Description

4040 100uH ±20% 2.5A
Documentation

Datasheet

IHLP4040DZER101M11 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

IHLP4040DZER101M11 Specifications

Attribute	Attribute Value

Part Number	IHLP4040DZER101M11
Manufacturer	VISHAY
ChipWorker Part#	CW21684539
Category	Inductor
Documentation	Datasheet
Mounting Style	Surface Mount
Case/Package	SMD
Current Rating	2.5 A
Capacitance Tolerance	±20 %
Inductance	100 µH
Part Family	IHLP
Inductance Tolerance	±20 %
Test Frequency	0.1 MHz
DC Resistance (DCR)	270 mΩ
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-55 ℃
Resistance (DC Max)	0.27 Ω
	expand all
Size-Length	10.92 mm
Size-Height	4 mm
Operating Temperature	-55℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free

Product Description

The IHLP4040DZER101M11 is a surface mount IHLP® shielded High-current Inductor handles high transient current spikes without saturation. This low profile inductor features frequency of up to 1MHz and an ultra-low buzz noise, due to its composite construction.
Shielded construction
Lowest DCR/µH
