IHLP6767GZER470M11 - VISHAY

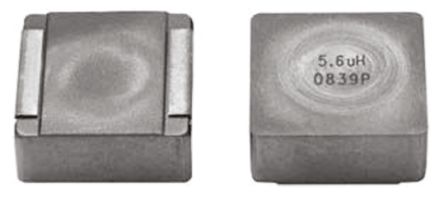

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

IHLP6767GZER470M11
Manufacturer

VISHAY
ChipWorker Part#

CW5434738
Category

Inductor
Package

SMD
Description

6767 47uH ±20% 8.7A
Documentation

Datasheet

IHLP6767GZER470M11 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

IHLP6767GZER470M11 Specifications

Attribute	Attribute Value

Part Number	IHLP6767GZER470M11
Manufacturer	VISHAY
ChipWorker Part#	CW5434738
Category	Inductor
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package	SMD
Current Rating	8.7 A
Capacitance Tolerance	±20 %
Inductance	47 µH
Self Resonant Frequency	4.1 MHz
Part Family	IHLP
Resistance	40.7 mΩ
Inductance Tolerance	±20 %
Test Frequency	0.1 MHz
DC Resistance (DCR)	0.0427 Ω
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-55 ℃
Resistance (DC Max)	0.0427 Ω
	expand all
Size-Length	17.15 mm
Size-Width	17.1 mm
Size-Height	7 mm
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC

Product Description

The IHLP-6767GZ-11 series IHLP® low-profile High-current Inductor with shielded construction. It is suitable for use in high-current POL converters, DC/DC converters in distributed power systems and DC/DC converter for field programmable gate array (FPGA).
Excellent DC/DC energy storage up to 1 to 2MHz and filter inductor applications up to SRF
Lowest DCR/µH, in this package size
Handles high transient current spikes without saturation
Ultra low buzz noise, due to composite construction
Halogen-free
-55 to 125°C Operating temperature range
