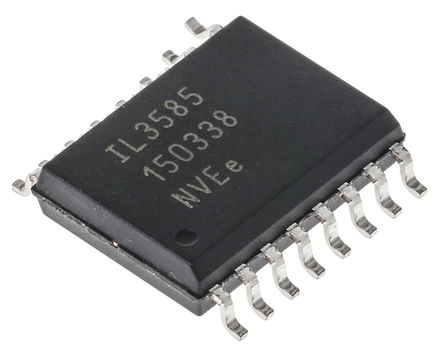

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

IL3585E
Manufacturer

NVE Corp
ChipWorker Part#

CW22787329
Category

Interface IC, Interface Controller
Package

SOIC-16
Description

Single Transmitter/Receiver RS-485 16Pin SOIC W Tube
Documentation

Datasheet

IL3585E Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

IL3585E Specifications

Attribute	Attribute Value

Part Number	IL3585E
Manufacturer	NVE Corp
ChipWorker Part#	CW22787329
Category	Interface IC, Interface Controller
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	16 Pin
Case/Package	SOIC-16
Supply Voltage (DC)	3.00V (min)
Output Current	≤1.00 mA
Supply Current	5.00 mA
Number of Channels	3 Channel
Number of Positions	16 Position
Data Rate	40.0 Mbps
Isolation Voltage	2500 Vrms
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	3.3V, 5V
Supply Voltage (Max)	5.5 V
Supply Voltage (Min)	3 V
	expand all
Size-Length	10.5 mm
Size-Width	7.62 mm
Size-Height	2.5 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2016/06/20

Product Description

The IL3585E is a PROFIBUS compatible isolated RS485 Interface with 100% matte tin lead frame plating. It is a galvanically isolated, high-speed differential bus transceiver, designed for bi-directional data communication on balanced transmission lines. Isolation is achieved through patented IsoLoop technology. The IL3585 offers an exceptional 2.3V differential output into a 54R load, over the supply range of 4.5V to 5.5V. This means better data integrity over longer cable lengths, even at data rates as high as 40Mbps. The device is also compatible with 3.3V input supplies, allowing interface to standard microcontrollers without the need for additional level shifting components. It has current limiting and thermal shutdown features to protect against output short circuits and bus contention situations that may cause excessive power dissipation.
