INA128U - TI

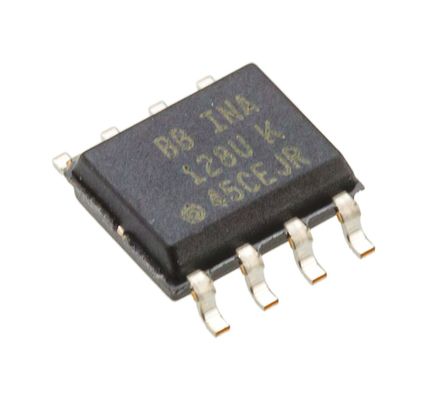

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

INA128U
Manufacturer

TI
ChipWorker Part#

CW1062767
Category

Instrumentation Amplifier IC
Package

SOIC-8
Description

TEXAS INSTRUMENTS INA128U Instrument Amplifier, 1 Amplifier, 50μV, 4V/µs, 1.3MHz, ± 2.25V to ± 18V, SOIC
Documentation

Datasheet

INA128U Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

INA128U Specifications

Attribute	Attribute Value

Part Number	INA128U
Manufacturer	TI
ChipWorker Part#	CW1062767
Category	Instrumentation Amplifier IC
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	SOIC-8
Supply Voltage (DC)	15.0 V
Supply Current	700 µA
Number of Circuits	1 Circuit
Number of Channels	1 Channel
Number of Positions	8 Position
Common Mode Rejection Ratio	130 dB
Quiescent Current	700 µA
Bandwidth	1.3 MHz
Slew Rate	4.00 V/μs
Gain Bandwidth Product	1.3 MHz
Gain	10.0 kdB
Input Offset Voltage	50 µV
Input Bias Current	2 nA
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
3dB Bandwidth	1.3 MHz
Gain Bandwidth	80 dB
Minimum CMRR Range	80 dB
Supply Voltage (Max)	30V ~ 50V
	expand all
Size-Length	4.9 mm
Size-Width	3.91 mm
Size-Height	1.58 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15

Product Description

The INA128U is a precision low power Instrumentation Amplifier offers excellent accuracy. The versatile 3-op amp design and small size make these amplifiers ideal for a wide range of applications. Current-feedback input circuitry provides wide bandwidth even at high gain (200kHz at G=100). A single external resistor sets any gain from 1 to 10000. The INA128 provides an industry-standard gain equation and is compatible with the AD620. The amplifier is laser-trimmed for very low offset voltage (50µV), drift (0.5µV/°C) and high common-mode rejection (120dB at G>=100). The amplifier operates with power supplies as low as ±2.25V and quiescent current is only 700µA, ideal for battery-operated systems. Internal input protection can withstand up to ±40V without damage.
5nA Maximum low input bias current
0.5µV/°C Maximum low drift
Inputs protected to ±40V
700µA Low quiescent current
Green product and no Sb/Br
This device has limited built-in ESD protection, leads should be shorted together or the device placed in conductive foam during storage or handling to prevent electrostatic damage to the MOS gates.
