INA181A1IDBVR - TI

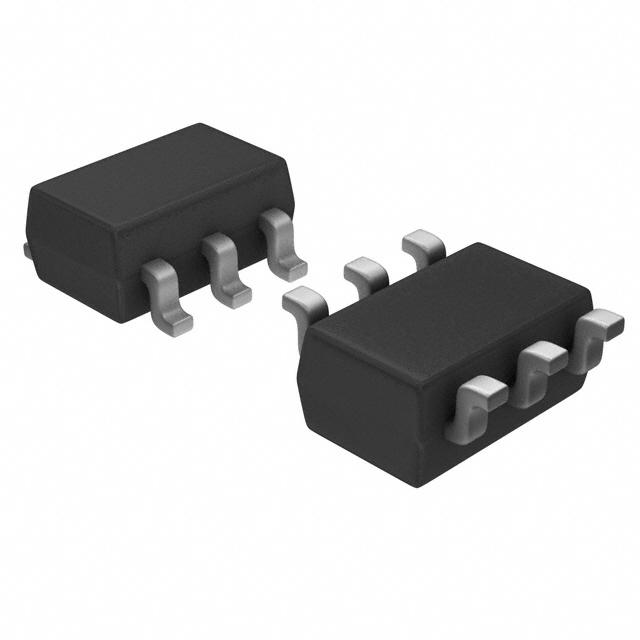

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

INA181A1IDBVR
Manufacturer

TI
ChipWorker Part#

CW63059727
Package

SOT-23-6
Description

26V, Bidirectional, 350kHz Bandwidth, Low- or High-Side Voltage Output Current Sense Amplifier 6-SOT-23 -40℃ to 125℃
Documentation

Datasheet

INA181A1IDBVR Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

INA181A1IDBVR Specifications

Attribute	Attribute Value

Part Number	INA181A1IDBVR
Manufacturer	TI
ChipWorker Part#	CW63059727
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	6 Pin
Case/Package	SOT-23-6
Supply Current	260 µA
Number of Circuits	1 Circuit
Number of Channels	1 Channel
Common Mode Rejection Ratio	84 dB
Gain Bandwidth Product	0.35 MHz
Input Offset Voltage	100 µV
Input Bias Current	75 µA
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
3dB Bandwidth	350 kHz
Minimum CMRR Range	84 dB
Supply Voltage (Max)	5V ~ 7V
	expand all
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free

Product Description

Current Sense Amplifier 1 Circuit Rail-to-Rail SOT-23-6
