INA199B3DCKR - TI

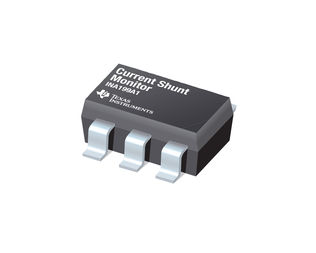

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

INA199B3DCKR
Manufacturer

TI
ChipWorker Part#

CW24026423
Category

Amplifier, Buffer IC
Package

SC-70-6
Description

26V, Bi-Directional, Zero-Drift, Low- or High-Side, Voltage Output Current Shunt Monitor 6-SC70 -40℃ to 125℃
Documentation

Datasheet

INA199B3DCKR Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

INA199B3DCKR Specifications

Attribute	Attribute Value

Part Number	INA199B3DCKR
Manufacturer	TI
ChipWorker Part#	CW24026423
Category	Amplifier, Buffer IC
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	6 Pin
Case/Package	SC-70-6
Number of Channels	1 Channel
Common Mode Rejection Ratio	100 dB
Gain Bandwidth Product	0.014 MHz
Input Offset Voltage	0.15 mV
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Accuracy	±1.5 %
Minimum CMRR Range	100 dB
Supply Voltage (Max)	20V ~ 30V
Input Voltage	2.7V ~ 26V
	expand all
Size-Height	1 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free

Product Description

The INA199 series of voltage-output, current-shunt monitors (also called current-sense amplifiers) are commonly used for overcurrent protection, precision-current measurement for system optimization, or in closed-loop feedback circuits. This series of devices can sense drops across shunt resistors at common-mode voltages from –0.3 V to 26 V, independent of the supply voltage. Three fixed gains are available: 50 V/V, 100 V/V, and 200 V/V. The low offset of the zero-drift architecture enables current sensing with maximum drops across the shunt as low as 10-mV full-scale.
These devices operate from a single 2.7-V to 26-V power supply, drawing a maximum of 100 µA of supply current. All versions are specified from –40°C to 125°C, and offered in both SC70-6 and thin UQFN-10 packages.
