IPA90R500C3 - Infineon

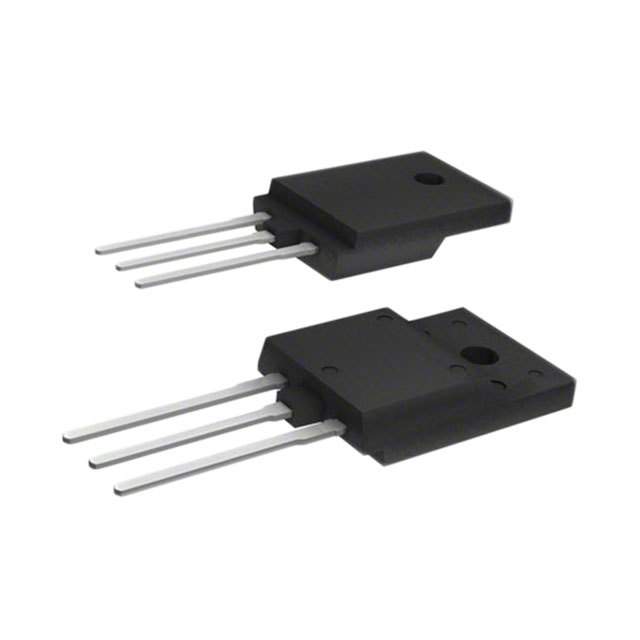

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

IPA90R500C3
Manufacturer

Infineon
ChipWorker Part#

CW73499233
Category

MOSFET, MOSFET Transistor
Package

TO-220-3
Description

TO-220FP N-CH 900V 11A
Documentation

Datasheet

IPA90R500C3 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

IPA90R500C3 Specifications

Attribute	Attribute Value

Part Number	IPA90R500C3
Manufacturer	Infineon
ChipWorker Part#	CW73499233
Category	MOSFET, MOSFET Transistor
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-220-3
Polarity	N-Channel
Power Dissipation	34 W
Drain to Source Voltage (Vds)	900 V
Continuous Drain Current (Ids)	11.0 A
Rise Time	20 ns
Input Capacitance (Ciss)	1700pF @100V(Vds)
Input Power (Max)	34 W
Fall Time	25 ns
Power Dissipation (Max)	34W (Tc)
	expand all
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
HK STC License	NLR

Product Description

Summary of Features:
Low specific on-state resistance (R on*A)
Very low energy storage in output capacitance (E oss) @400V
Low gate charge (Q g)
Fieldproven CoolMOS™ quality
CoolMOS™ technology has been manufactured by Infineon since 1998
Benefits:
High efficiency and power density
Outstanding cost/performance
High reliability
Ease-of-use
Target Applications:
Consumer
PC power
Adapter
Lighting
